Golf Simulator Cage and Solid Wall Enclosures

Fabric Wall and Cage Frame enclosures

Click above image to read more about the GSA Pro Enclosures

Carls Fabric enclosures

Solid black knit fabric Pro enclosures from $2,999



Self standing Carls Pro enclosures with premium 3 layer impact screen

Click above image to read more

Golf bays enclosures

Golf Bays Simulator enclosures from $ 1,999.00

(click above to read more...)

GSA Pro Enclosures

Click above images to read more about the new GSA Golf Pro Enclosures

Padded grass turf. Color: OliveGreen 3/8" to 1/2" thick

Fiberbuilt Golf mat systems

with interlocking foundations

Studio dual 4' x 4' stance mat and fairway grass panels with interlocking foundation

$ 1,349




Canopy / Awning

Note that we don't supply ready made canopies but this is how you can build one


Suspended Canopy

If you don't have a ceiling suitable for mounting the canopy,

you can make up a frame like this out of 2 x 4" and 2 x 8" wood beams and use suspension cable systems secured to the back wall.

Drape tracks can be then mounted directly to the frame and the center beam can be used to mount the projector, lights and cameras.

The fabric covered canopy panels and ceiling drape can also be mounted to the frame

Hanging drape Awning/Canopy

A simple, inexpensive but effective awning is to hang 1 or 2 foot or so wide pocket heavy drape along the front

and optionally on the sides from the ceiling around the enclosure.

Use conduit pipe or drape rod clamped to the ceiling to suspend the drape

Awning pocket drape - black 20 oz napped both sides, hemmed on all sides

Custom size up to 18ft long x 2ft wide

Use conduit pipe or drape rod clamped to the ceiling to suspend the drape

Awning pocket drape - black 20 oz napped both sides, hemmed on all sides

Custom size up to 18ft wide x 2ft long

Price :

$ 299.00




6ft * 12ft less reflective padded turf grass mat suitable for camera systems

Price $399 + $99 shipping

Cage frame enclosure fittings

GSA Golf cage tube frame kit

Consisting of multi way fittings for 1 inch tube

1 inch conduit tubing is available at most Home Depot and Lowes stores in 10 ft lenths for around $7.00 each.

Cut to size or extend tube lengths using the coupling. Use conduit clamps to secure to floor

- You can make your enclosure any size you like by adding additional pipe lengths with the FC connectors or cutting down the standard 10ft pipe lengths to your requirements.

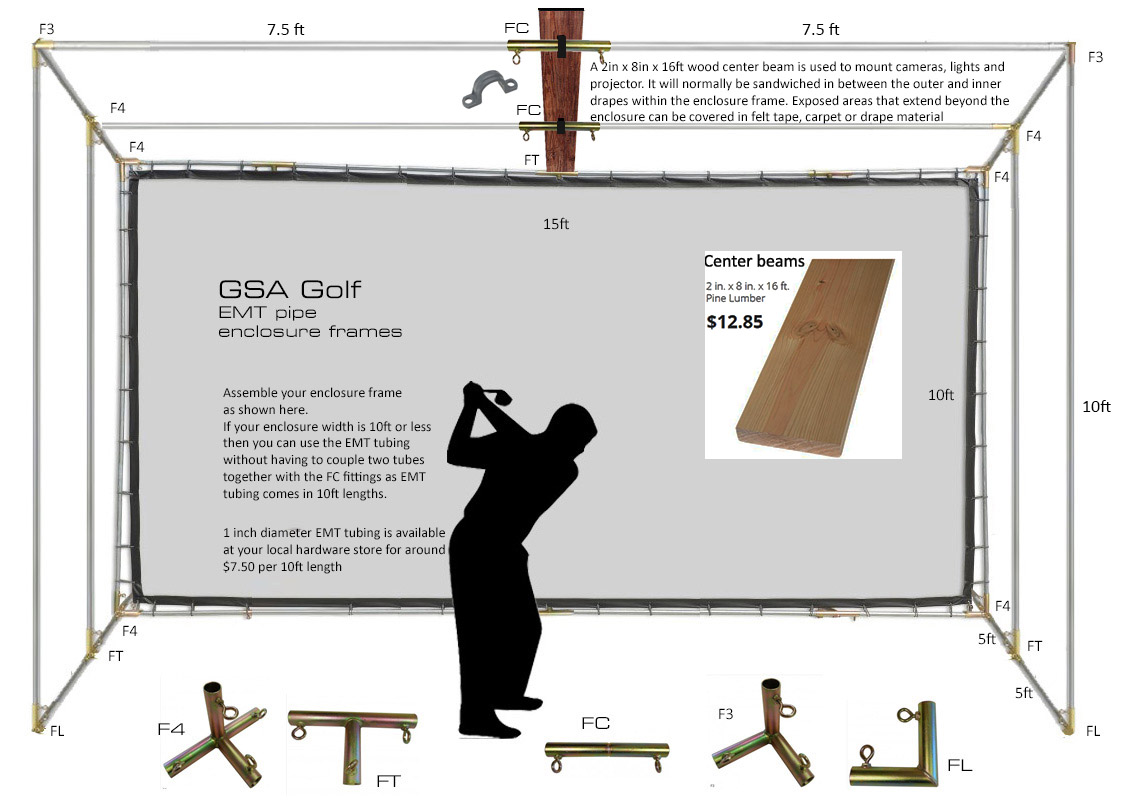

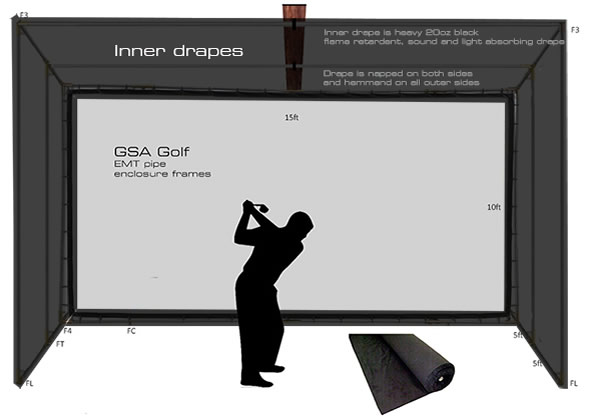

The above image shows frames for a 10 foot high, 10 foot deep and 15 foot wide enclosure

Standard enclosure depths are 5ft, 10ft and 12 ft.

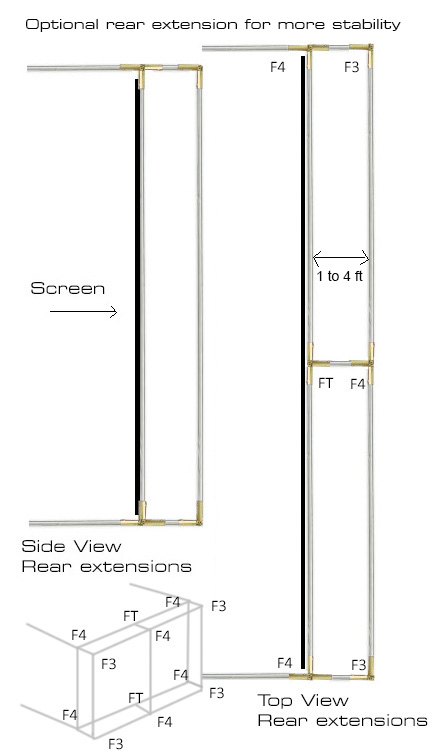

Rear extensions can also be added for additional stability

Click above image to see a video of how easy it is to cut EMT Conduit piping

Number of EMT conduit 10ft tubes required:

for a 10'w 10'h 10'd enclosure without rear extension = 14

for a 10'w 10'h 10'd enclosure with rear extension = 19

for a 15'w 10'h 10'd enclosure without rear extension = 16

for a 15'w 10'h 10'd enclosure with rear extension = 24

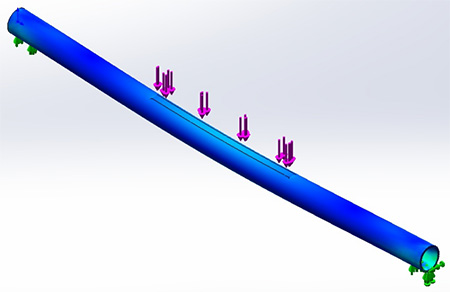

Note that pipe/tubes will start to sag and bend under the tension of the screen and the weight of the drapes and projector if too long

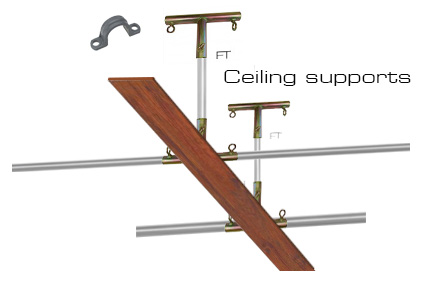

To prevent this, use ceiling support mounts along the center beam.

These can also be made out of the FT fittings using steel pipe/tube cut to lengths with brackets

Set of 16 standard enclosure frame fittings without rear extensions are

4 FC + 2 FL + 2 FT + 2 F3 + 8 F4

Set of additional 8 rear extension fittings are

2 FC + 2 F4 + 4 F3 + 2 FT

Full set of all tube fittings

Price : $ 699.00

Note: Price of tubing, tube pipe insulation, and center beam wood not included as these items are too long

and thus too expensive to ship and should be purchased locally at your Home Depot or Lowes hardware store





International customers!

Please note: This product is only available for this price for US resident customers only.

Contact us if you are outside the US for a shipping quote for this product.

If you're an international customer and ignore this warning and still click the "Buy Now" button to process the transaction

then the product will not be shipped and a 10% refund charge will be applied.

Call or Email us to purchase individual tube fittings

1 inch diameter pipe tubing

14 x 10ft lengths $ 399





Complete Set of drapes and cage fittings for single layer cage enclosure

consisting of 2 heavy side drapes with grommets 10 ft wide, 9 to 13ft high with 10ft x 18ft ceiling drape

plus full set of all tube fittings

consisting of 16 standard cage enclosure frame fittings

4 FC + 2 FL + 2 FT + 2 F3 + 8 F4

plus additional 8 rear extension fittings

2 FC + 2 F4 + 4 F3 + 2 FT

Price : $ 2,399.00

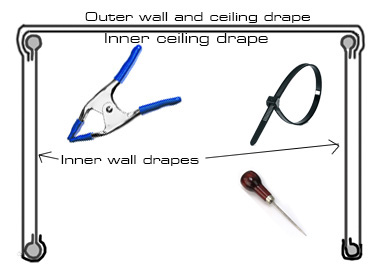

Complete Set of drapes and cage fittings for double layer cage enclosure 10ft deep

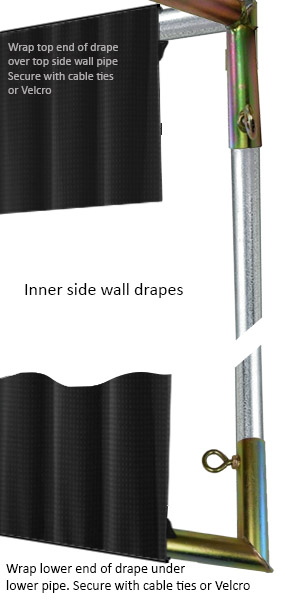

consisting of 2 heavy side inner drapes with grommets 9.6 ft wide, 9 to 13ft high with 10ft x 18ft ceiling drape

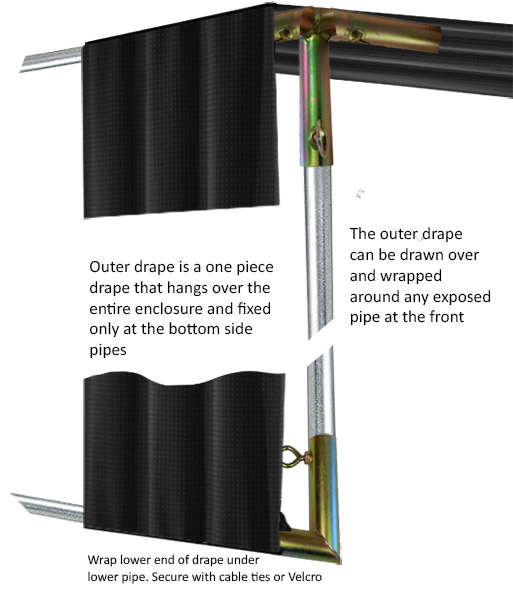

plus 2 lighter weight outer side drapes 9,6 ft wide (deep) , 9 to 13ft high

Price : $ 3,199.00

Complete Set of drapes and cage fittings for double layer cage enclosure 14ft deep

consisting of 2 heavy side inner drapes with grommets up to 14ft wide( deep), 9 to 13ft high with 10ft x 18ft ceiling drape

plus 2 lighter weight outer side drapes upt o 14ft wide (deep) , 9 to 13ft high

Price : $ 3,899.00

International customers!

Please note: This product is only available for this price for US resident customers only.

Contact us if you are outside the US for a shipping quote for this product.



The above shows what the cage enclosure looks like before the drapes have been fitted

(Image from Rich Collins)

Matt D's indoor golf facility GSA Golf wide screen drape enclosures nearing completion





Solid Wall Enclosures

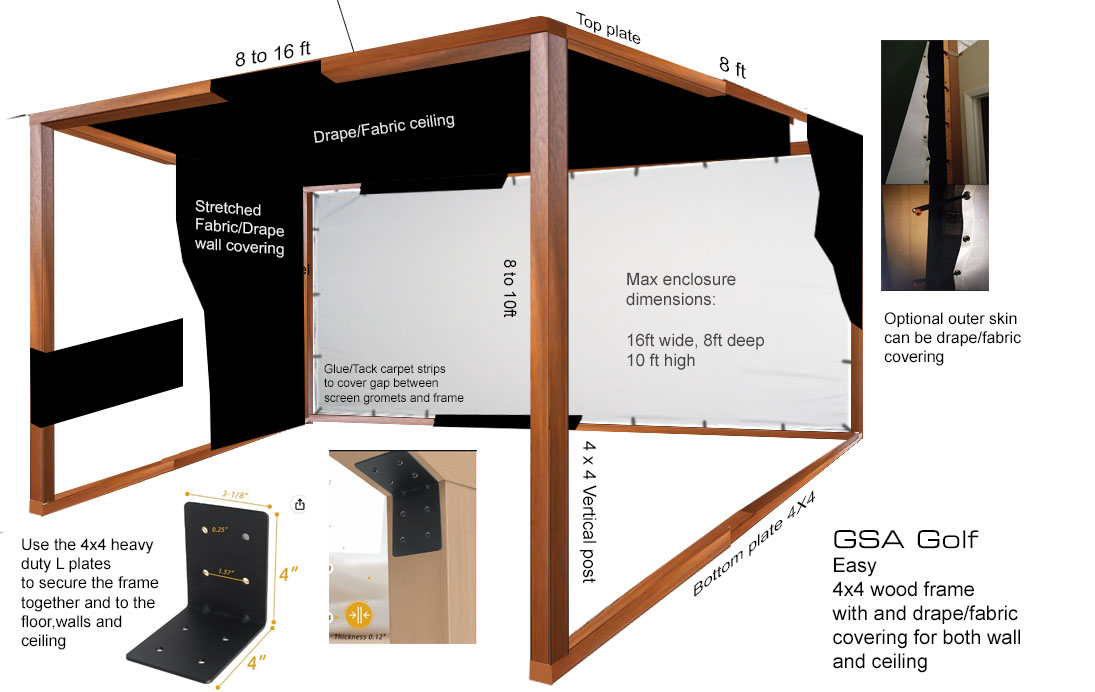

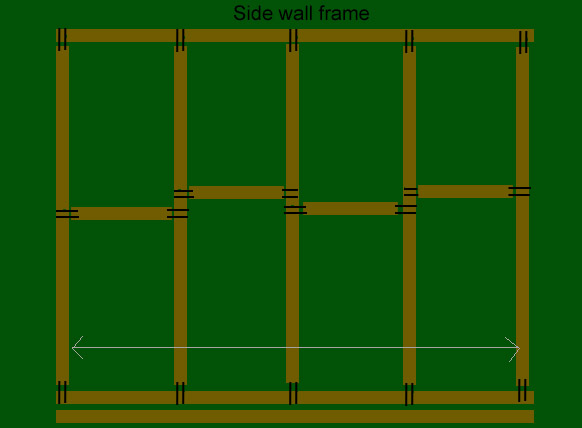

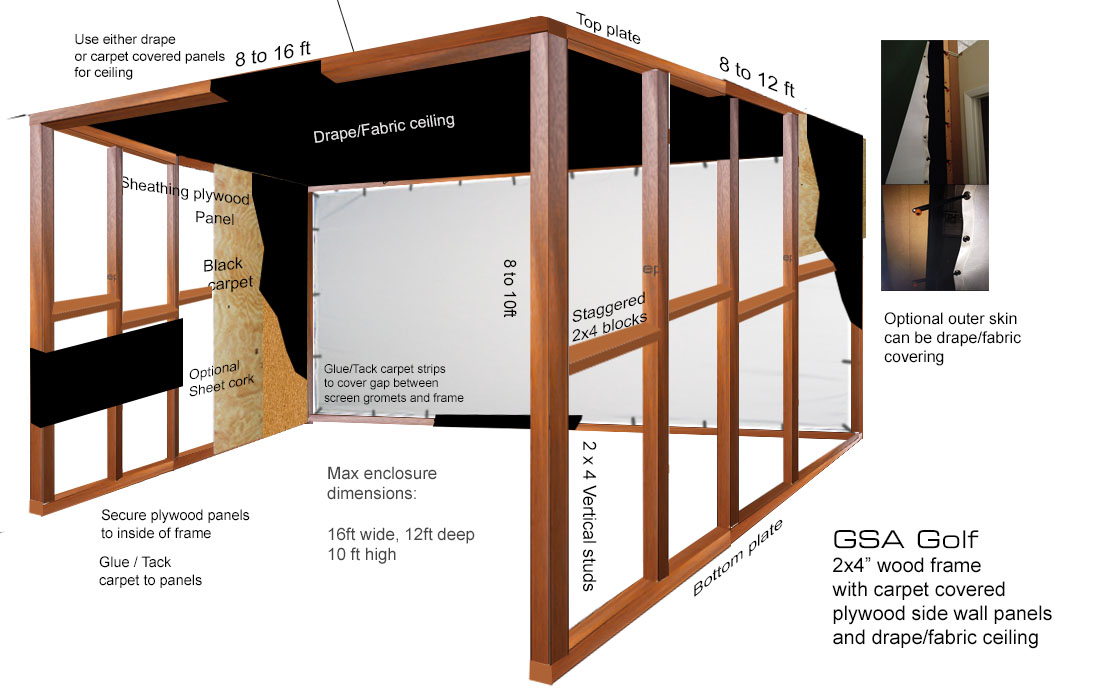

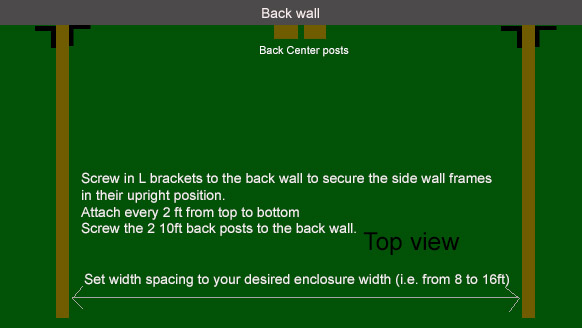

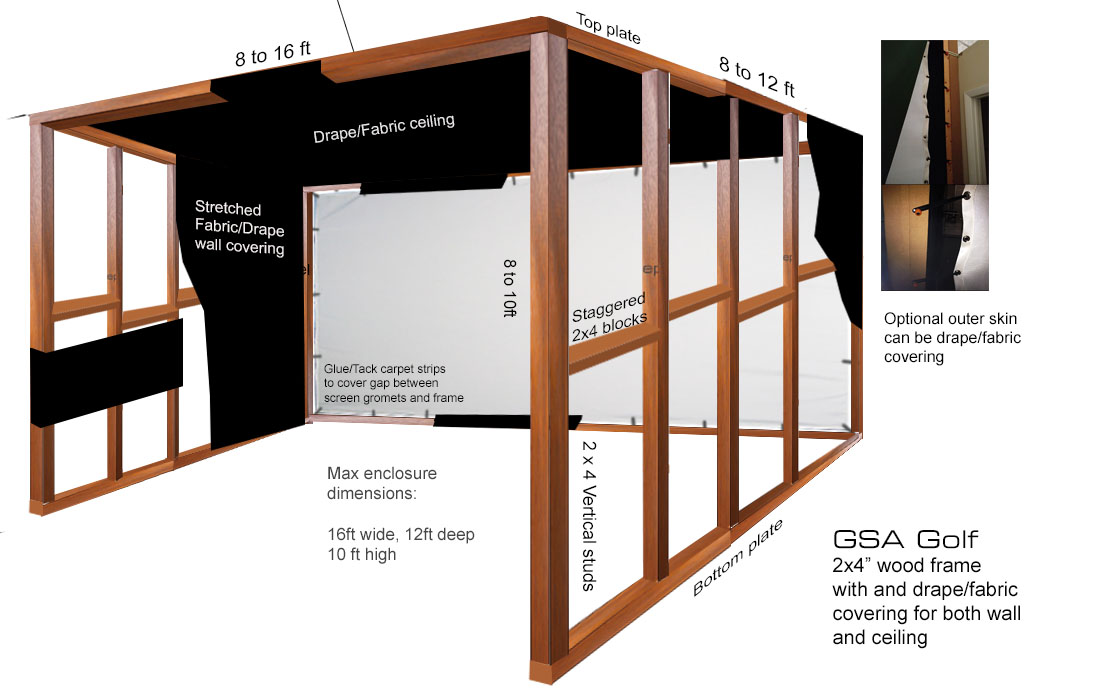

An alternative to the tube/pipe frame is to use 2"x4" construction lumber wood.

It's main advantages are

1. Stronger more rigid frame structure with solid padded walls

2. Cleaner look

3. Relatively inexpensive

Disadvantages:

More assembly time

Lumber for a 12-16 ft wide, 9-10 ft high, 12-16ft deep enclosure will cost aprox $100

Plywood panels aprox $200

Wall panel carpet approx $300

A recommended carpet is : Beaullieu of America - Type: Dayside Ebony, Product 6670-890 which is available at your local Home Depot store at around $4.00 a per ft 6ft wide.

Fire retardant ceiling drape $150

Optional sheet cork panel backing (for further sound and shock absorption) around $300

Optional awning panel $300

Total price then is aprox : $ 1000


Click above image to read more about padded panel enclosures

Instead of lining the walls of the enclosure with carpet

you can also use padded wall panels

The finished panels can be adhered to the walls using either Velcro or double sided tape.

Click above image to read more about padded panel enclosures

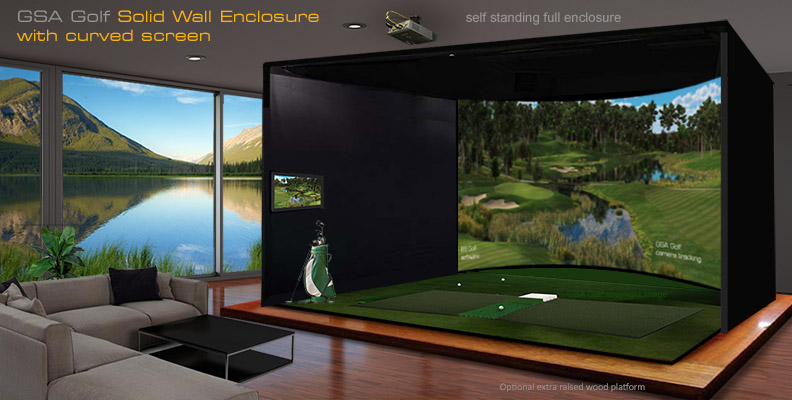

A completed solid wall enclosure with flooring and awning

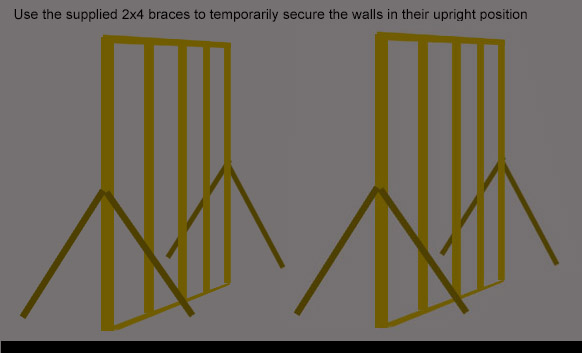

A solid wall enclosure during construction

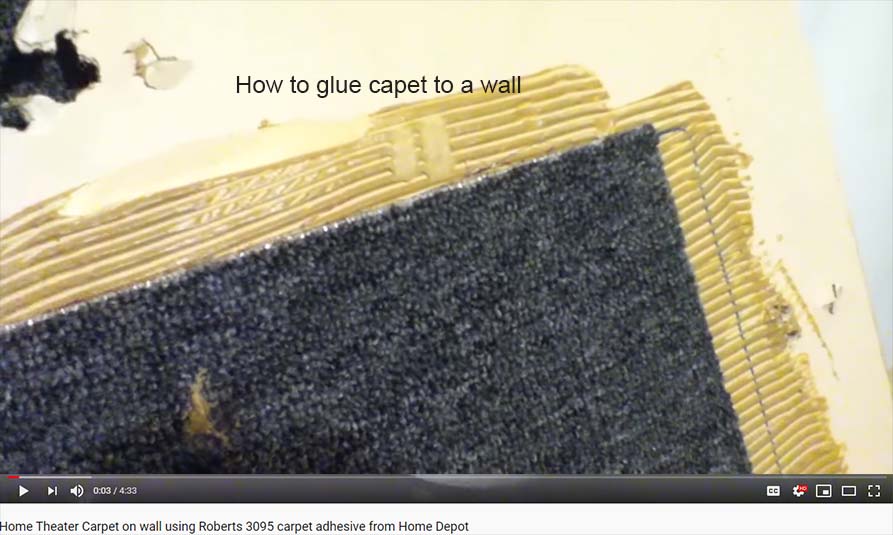

Using carpet to cover side walls

If you have a dedicated room where the room width is the same as the screen width

then you can also simply cover the side walls with roll carpet or carpet tiles.

A recommended carpet is : Beaullieu of America - Type: Dayside Ebony, Product 6670-890 which is available at your local Home Depot store at around $4.00 a per ft 6ft wide.




GSA Golf SimLux

custom High-End solid construction enclosures

GSA Golf solid construction enclosures feature laminate plywood, cork, carpet padded walls and ceilings, grass fiber hitting surfaces and grass turf rubber laminate flooring

Prices from $15,000 for our SimLux enclosures
