Launch Monitor

EVi ?

The E stands for Eagle

V for vertical camera

I for SSi (Super Speed Inovation) cameras

Our most accurate and comprehensive camera tracking system

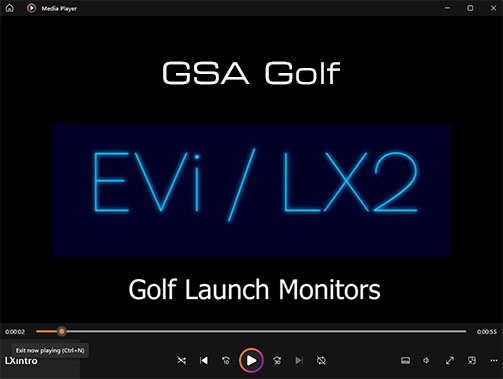

Click above image to view YouTube videos

Try it before you buy it

GSA Golf Control Panel Full version download

Use the above download to install the full version Control Panel with sample shot videos.

Download includes sample shot videos of the SCX, EVi and LX2 systems

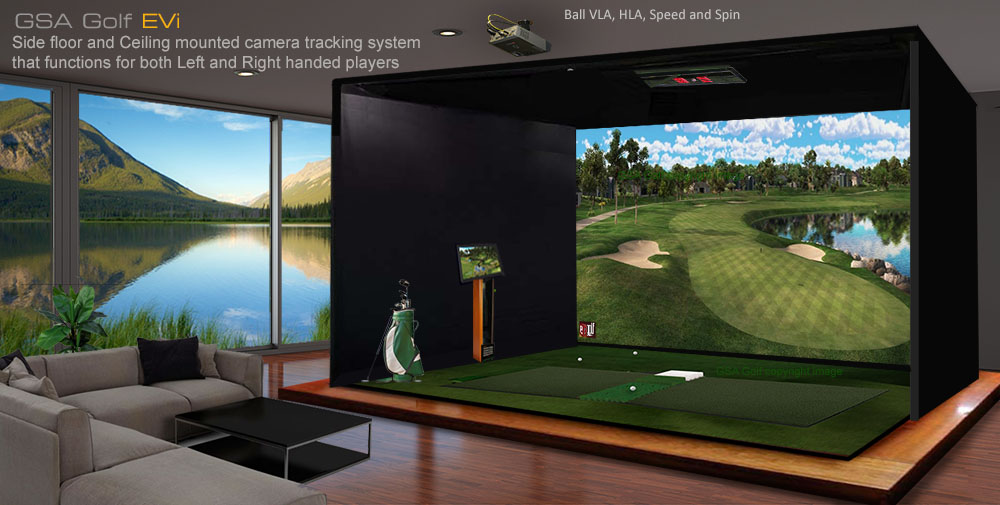

The new VisTrak EVi golf launch monitor combines the overhead mounted VisTrak Eagle

and a floor mounted Vertical launch Vcam camera.

The VisTrak EVi captures full 32 frames of the shot viewed from both the overhead and side mounted cameras.

VisTrak EVi Track Light

Price includes the 4 lamp led lighting track and light bar

$ 2,699

Choose between color or monochrome cameras

VisTrak EVi Cased IR LED

No requirement to use club markings or specially marked balls !

$ 3,299

EVi cased systems include the additional halogen track lighting

Dual camera angle 32 frame shot videos

The new GSA Golf EVi and KX systems feature dual hi-speed camera 32 frame shot playback videos

from both the top and side cameras after every shot

World's first and only camera tracking system with dual camera angle 32 frame shot playback videos

To the best of our knowledge, the VisTrak EV and KX systems are the only systems on the market

that feature dual 32 frame shot videos from both the top and side view cameras after every shot.

The new "Mini" shot videos are immediately displayed in the game software after every shot.

The video window can be positioned anywhere in the game software.

The VisTrak EVi cameras run at 800 to1500 fps with dual swing playback videos after every shot

Select "Top Camera" to view a 32 frame captured video of your shot as viewed by the overhead mounted top camera.

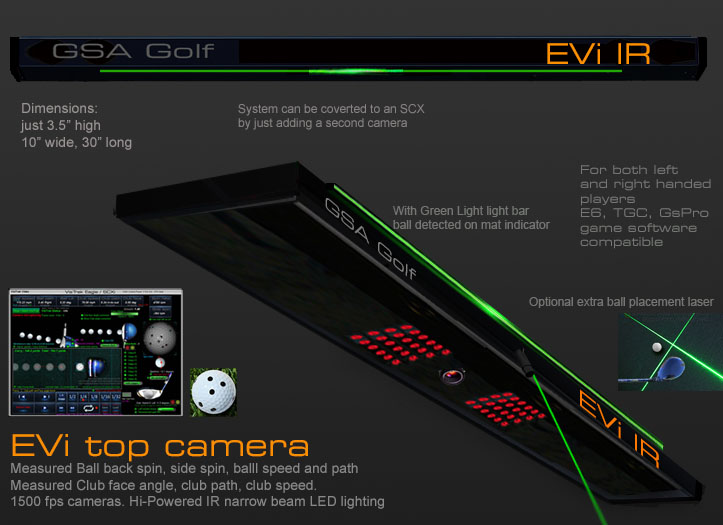

The Top View camera measures ball speed and path plus club face angle, speed and path.

Select "Side Camera" to view a 32 frame captured video of your shot as viewed by the side mounted camera.

The Side View camera measures ball vertical launch angle and and full 360 degree measured ball spin using just the ball's logo

The Vcam camera also runs at 800 to 1500 fps with full video swing playback after every shot

There are thus two 32 frame videos available for the user to view after a shot.

1. from the overhead camera

and

2. from the floor mounted side view camera

The additional Vcam 32 frame shot video will show how the ball was struck by the club as viewed from the side in slow motion.

The Vcam video shows club angle of attack and where the club made contact with the ball. i.e. fat, thin or ideal.

VisTrak EVi Ball Spin Detection

Ball Spin Detection from the Side camera

When the EVi Vcam is placed close to the ball (i.e within 12 inches), the camera detects ball spin rate using either the ball logo or ball spin dots.

The Vcam with EVi systems view's the ball from the side.

Rotation - when using spin dot balls - is calculated around the center of the ball between frames

Ball Spin Detection from the overhead camera

Ball spin can also be measured from the EV overhead camera

Rotation and spin axis is calculated by comparing x and y spin dot deviation positions between frames

Club Detection Setup

with or without reflective stickers

Click above to read how the system detects club data with or without reflective stickers

VisTrak EV layout configurations

The Standard VisTrak EVi Far system layout functions for both LH and RH players without the requirement to move cameras,

and detects all data except measured ball spin.

Ball spin is calculated from the captured club data

When mounting the cameras in the EVi Close configuration layout

(either 2ft away with 6mm lens or 6 to 9ft away with 12 mm lens),

ball spin is measured but the floor mounted camera has to be moved if swapping LH and RH players.

Optional Extras

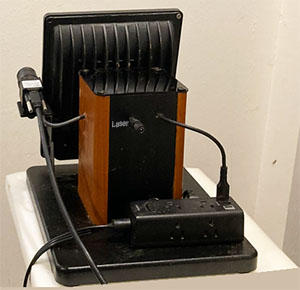

Laser Ball Placement Indicator

Optional extra laser ball placement guide

Laser automatically switches off when ball is located.

Indicates to user that the ball has been detected in the launch zone area on the mat and ready for swing

$299

Hi-Definition Computar Lenses

now encluded with all EV systems

Computar hi-definitions lenses produce brighter images allowing the user to

either reduce the exposure time down to 150 micro-seconds and thus eliminate motion blur

or

reduce the amount of lighting while leaving the exposure time at the standard 300 micro-seconds.

Note that all EV systems now come with these lenses now at no extra cost



VisTrak camera plus Vcam camera - IR lighting

Data captured:

Ball speed, ball path, ball LA, Ball Spin, Club speed, club path,club face angle

Functions for both LH and RH players without having to move any cameras.

Includes video swing playback after every shot from two cameras.

Functions with TGC, GSpro and E6 Connect software and more

Single 18 hole Golf course game software included

EVi

without casing and lighting

Cameras, cables and software only - without casing and lighting

System comes complete with 2 hi-speed cameras, camera mounts, lenses and cables,

Control Panel and 18 hole course game software.

Just add IR LED lighting

-

-

Price $1,799

Usually ships within 24 to 48 hours

The EVI LED Track consists of 2 hi-speed cameras with LED visible light Lighting

plus one floor mounted camera with one IR LED lighting

MSRP Price $ 3,699

Direct manufacturer / wholesale price

Price $2,699

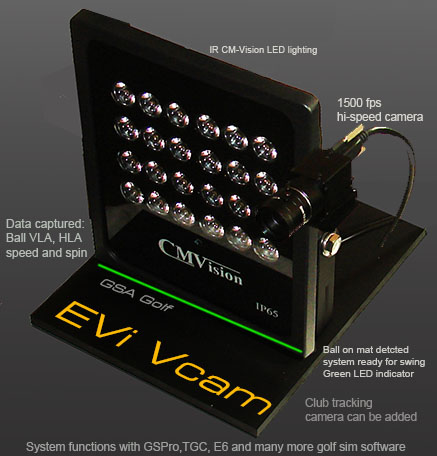

EVi Vcam non-cased with LED IR lighting

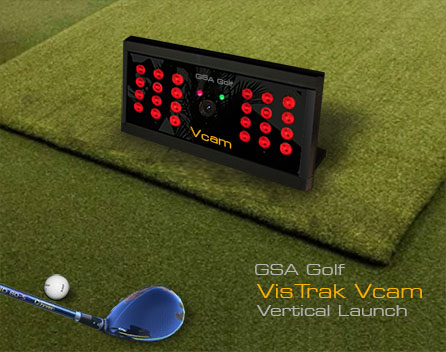

Floor mounted camera add-on to VisTrak Eagle to capture vertical launch angle

Price $1,199

EVi Vcam cased with LED IR lighting

Price $1,599

EVi Cameras with LED track and LED IR lighting

IR monochrome and color cameras options available

MSRP Price $ 3,699

Direct manufacturer / wholesale price

Price $2,699

EVi Color Cameras with LED light track lighting

World's fist and only hi-speed camera tracking system in color!

1 overhead color camera with LED track lighting plus 1 floor mounted monochrome camera with IR LED lighting

EVi Software only - without cameras and lighting

EVi Control Panel and 18 hole course game software.

Purchase your own hi-speed 1500 fps cameras and lighting on Amazon

Compatible with GSpro, TGC, E6 connect and CG3d game software

Price $399

System captures LA for both LH and RH players without having to move the unit.

The VisTrak EVi has all the usual VisTrak Eagle features with swing video playback from its overhead hi-speed camera.

Shot video playback is available after every shot.

Each captured shot video is stored in a database that can store up to 500 shot videos.

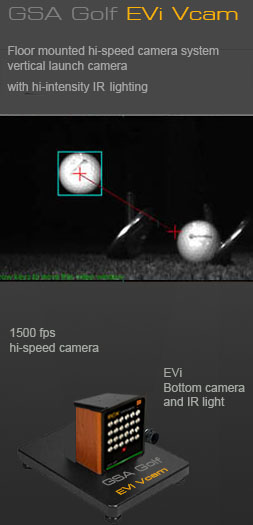

The VisTrak EVi Vcam detects exact vertical launch angle from its high speed side mounted camera.

A 32 frame Vcam video playback can be viewed after every shot from the side mounted camera

in addition to a 32 frame video from the overhead camera.

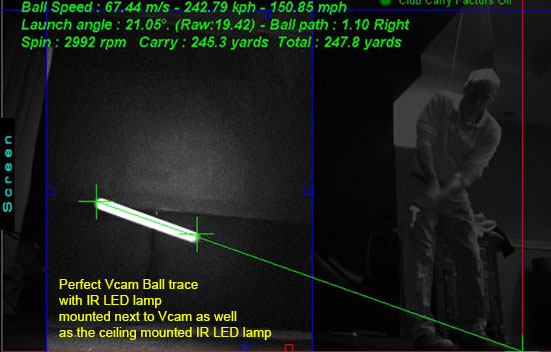

The above image shows a Vcam shot when the Vcam camera is placed 4 to 9 ft off to the side.

When the EV Vcam is placed close up (1.5 to 2ft) to the ball,

spin rate can be detected from the ball's logo so that no speacial marked balls are required.


Ball Spin Setup

Click above button to read how setup ball spin detection




Optional Ball markings

To save you from having to bend down and place the ball so that the ball's logo is facig the camera for every shot,

you can use marked spin dot balls.

24 Bridgestone spin dot balls

$ 59.98

Optional Club markings

One or two white strips can be applied to the leading edge of irons and the top edge of woods

in order for the system to detect more precise club face angle, speed and path.

However, the system will also function with regular clubs without these markings.

System is supplied with a set of white strips

Game software options

--

-

-

Click above images to read more ...

GSA Golf VisTrak cameras function with all the above golf simulator course software

Other GSA Golf Vistrak systems

Click above to read more ...

VisTrak camera setup videos

Click above image to view all VisTrak setup YouTube videos

Accuracy

VisTrak vs GC2 comparison results

Just in from independent tester Phil in the UK that has a GC2 and is running comparison tests with his VisTrak system

Putting

Vistrak 12.99 mph, GC2 13.0 2 mph

Vistrak 6.36 mph, GC2 6.0 3 mph

Vistrak 16.5 mph, GC2 17.3 mph

Chipping

Vistrak 49.73 mph, GC2 49.2

Full shots

Vistrak 80.37 mph , GC2 78.9 2 mph

Vistrak 78.63 mph , GC2 79.8 3 mph

Vistrak 87.22 mph, GC2 88.0 mph

GSA Golf system minimum PC requirements

-

Intel i5 or above Processor

Warning! Do not use PC's with AMD processors.

8GB RAM Nvidia 1070 Graphics Card or equivalent

25GB of Hard Drive Space

Windows 10 or 11 (Required)

Internet Connection

(Required if using 3rd party game software such as E6, TGC or GSPro)

2 X USB3 ports (Required)

Note: The cameras are USB3 cameras

and will only run at the correct speed when connected via USB3 cables directly to separate USB3 ports on the PC

Warning

If using 2 cameras, do not connect the cameras together with a Hub !

All cameras must be directly connected to separate USB3 ports on the PC

Use only powered USB3 extension cables if the supplied cables are not long enough

Warning : Do not use Laptops

Laptop PCs are usually not powerful enough to run the cameras due to the limited band width of the USB 3 bus in laptops

and the gaming software (i.e. E6. TGC, Gs pro etc)

as the demand on the graphics card will be quite great and updating graphics cards on Laptops may not be possible.

Technical Support

Email and remote access support is available for all original purchasers of GSA Golf systems.

E-mail support is free of charge for all original purchasers of GSA Golf systems.

Remote access support is available for all purchasers for $75 per session (max 1 hr per session)

Note that your 1 hour session can be divided up to 2 sessions of 30 min or 4 15min sessions

Remote support sessions are available 7 days a week (including weekends i.e. Sat or Sun) at 2pm ET

Remote access support requires that you have "TeamViewer" installed on your PC

Go to www.teamviewer.com to get your free team viewer installed

Buy GSA Golf remote support 1 hr session for

Price: $ 75.00

LED Track Lighting

4 hi-power LED zoom-able track light system with 800 Lumens per light

With track

Price $199

Warranty and Return Policy

30 days with a 15% to 20% restocking fee

Please read our legal notice via the link below regarding warranty periods and return policy

Note that a 15% to 20% re-stocking fee (depending on condition) will be charged in the event of a return

Customer is required to return the product at own expense. ie, GSA Golf do not send free return labels

Note: this 30 day return policy does not include 3rd party game software such as TGC,

enclosure items such as screens, flooring, drapes, panels etc.

i.e. it is solely for camera tracking systems

Please read our legal notice via the link below regarding warranty periods and return policy
