Launch Monitors

VisTrak LX Golf Launch Monitors

Our most accurate and comprehensive floor mounted camera tracking system

The VisTrak LX2 is the world's first and only floor mounted launch monitor that features a true horizontal camera

that captures club face angle, club path and speed with video shot playback of both the vertical and horizontal cameras.

All shots detected. From full drives to chips and putts with shot replay 32 frame videos.

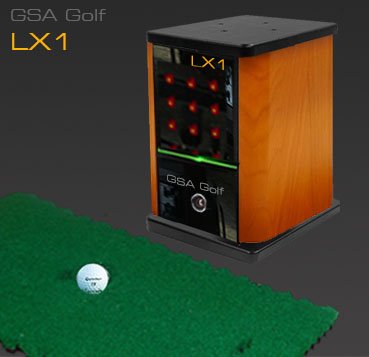

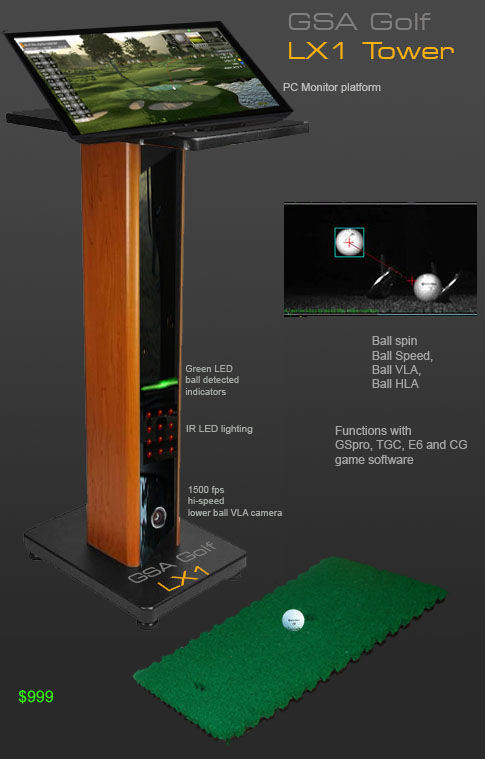

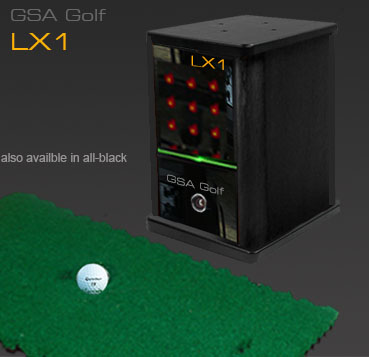

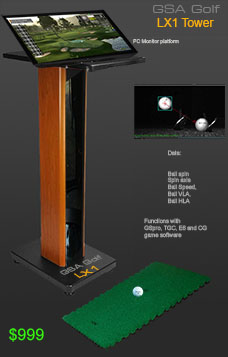

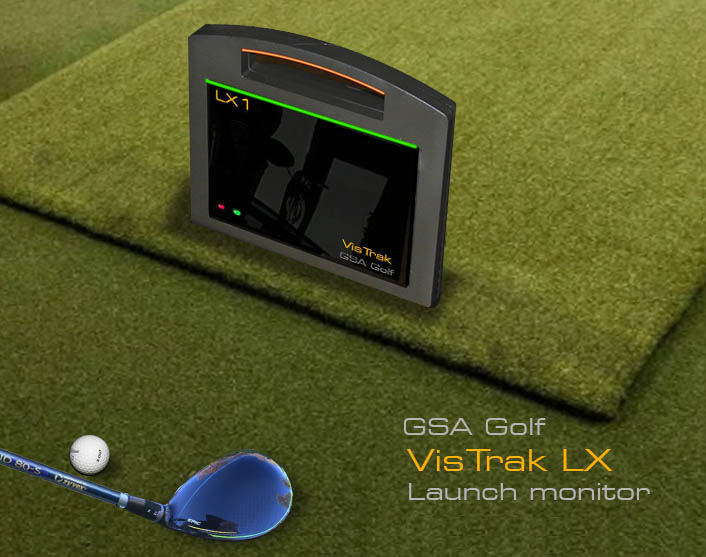

VisTrak LX1 Golf Launch Monitor

Price $1,299

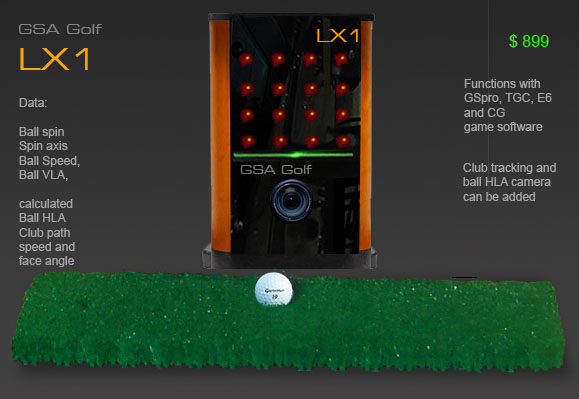

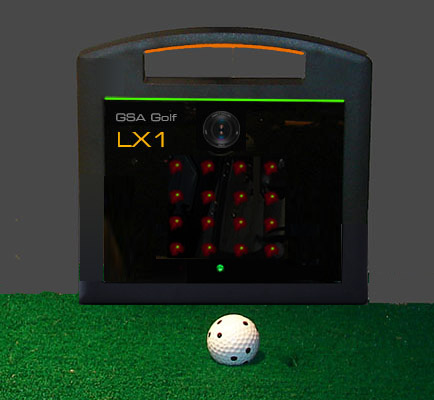

VisTrak LX1

-

Measured Data captured:

Balll speed, Ball Vertical Launch angle, Ball Spin

Calculated/Estimated Data captured:

Club face angle, club path, club speed and Ball Path

Price $1,299

Note: Full CP software and 1 18 hole golf course game software is included

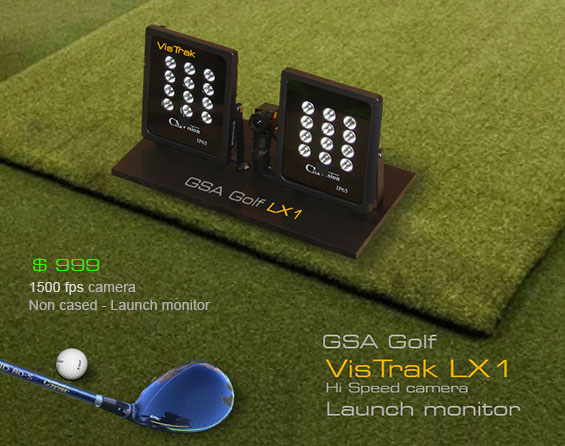

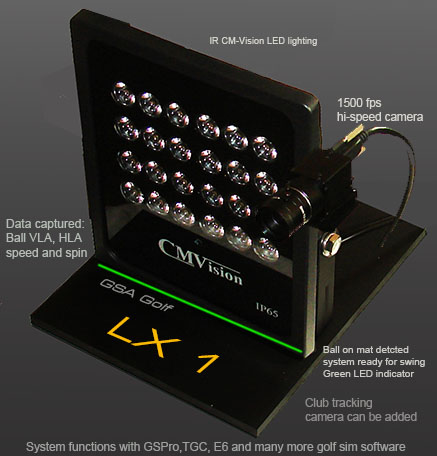

VisTrak LX1 Lite

All the features of the above cased LX1 but without the casing

Price $799

LX1 DIY price

GSA Golf CP camera control and image processing software : $199

Camera : $300 (available on Amazon)

CM Vision IR light : $90 (available on Amazon)

Total : $589

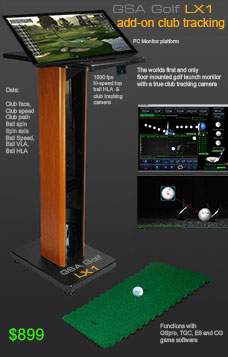

VisTrak LX1

add-on Club tracking camera

add a horizontal camera with lighting to the LX1 to make up a full LX2 system with full club tracking capabilites

Price $899

The world's first swing capture system that combines swing capture with ball and club tracking for use in a golf simulator

Click above image to read more about the new GSA Golf Swing Capture systems

VisTrak SCS

Swing Capture Side camera

with Ball and Club tracking

$ 1,299 cased version

The SCS is a floor side mounted hi-speed camera Swing Capture and ball tracking system

that can be used for both Left and Right handed players

without having to move the unit.

The SCS is placed 5 to 8 ft away on either the right or left side of the enclosure

and 3 to 4 ft ahead of where the ball is being played from.

The SCS hi-speed camera - with wide angle lens and longer exposure time -

captures 150 to 300 frames of the ball and player before and after ball strike.

So you not only see how the ball flies, but also how you struck it with your back swing and swing follow through

The longer exposure time shows the ball in each frame as a bright motion blur streak whereby the length of the streak

and spacing between ball streaks in each frame is directly proportional to the ball speed.

Another big advantage of using longer camera exposure times is that the player is illuminated without the requirement to add more lighting.

$ 999 non cased version

SCS DIY price

GSA Golf CP camera control and image processing software : $199

Camera : $300 (available on Amazon)

CM Vision IR light : $90 (available on Amazon)

Total : $589

VisTrak SCT

Swing Capture Top

camera

with Ball and Club tracking

The SCT hi-speed camera - with wide angle lens and long exposure time -

captures 32 to 128 frames of the ball and club with the players club swing before and after ball strike.

The combo SCTS is - to the best of our knowledge at least - the only hi-speed camera tracking system that combines

both ball and club tracking with swing capture video playback.

The SCS captures the player and ball viewed from the side while the SCT captures ball and club viewed from overhead.

The post shot video playback contains 32 frames from both cameras.

$ 1,699 cased version

$ 1,299 non cased version

Coming this August

SCT DIY price

GSA Golf CP camera control and image processing software : $199

Camera : $300 (available on Amazon)

CM Vision IR light : $90 (available on Amazon)

Total : $589

VisTrak SC2

Combo SCS with SCT

$ 2,998 cased version

$ 2,298 non cased version

Coming this August

SC2 DIY price

GSA Golf CP camera control and image processing software : $199

Camera : $300 (available on Amazon)

2 x CM Vision IR light : $90 each (available on Amazon)

USB3 32 ft powered extension cable $40

Total : $719

VisTrak Eagle

add-on ceiling mounted Club tracking camera

Click above image for more VisTrak Eagle casing options

Hi-speed ceiling mounted camera tracking system

with green light bar system ready indicator

$ 1,299

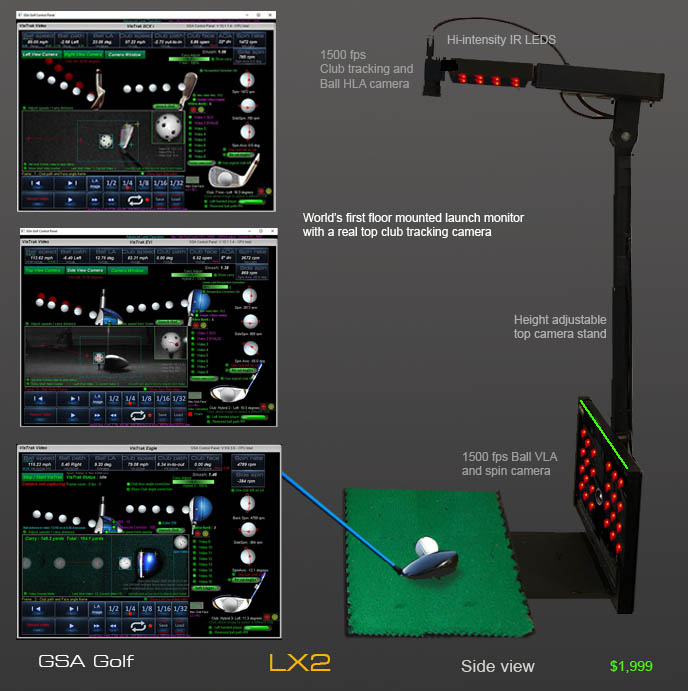

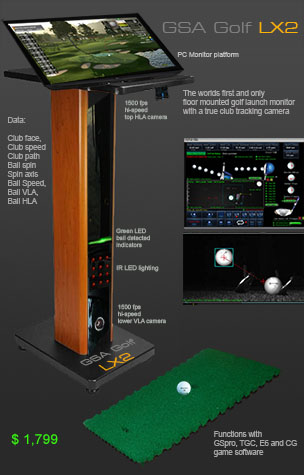

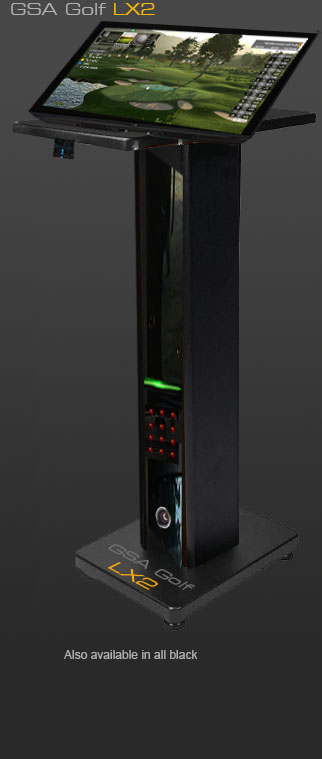

VisTrak LX2

$ 1,999

LX2

Case options

1. Carry Case

The LX2 comes complete with the overhang lighting

2. Box Case

3. Non Cased

floor mounted

4. Non Cased

stand mounted

Featuring hi-speed 1500 fps vertical and horizontal cameras for both club and ball tracking with shot playback videos

The GSA Golf LX functions with E6, GS Pro, CG3 and TGC (and more) game software packages

without any additional GSA Golf subscription costs.

Note that the VisTrak LX2 is the world's first and only floor mounted launch monitor that features a true horizontal camera

To the best of our knowledge, all others offer only systems with vertically mounted cameras so they can't see the club face angle.

Note: The LX2 is for indoor use only and requires a connection to a 110/120v power outlet

and 2 USB3 camera cables connected to the PC

Data captured: Ball speed, ball launch angle, ball path and ball spin rate plus

Club face angle, club path and speed

.

The VisTrak LX2 is the world's first and only floor mounted launch monitor that features a true horizontal camera

that captures club face angle at impact to the ball with video shot playback

All data is user verifiable

In contrast to most other systems - (especially radar based systems where essentially zero data is user verifiable)

all data with the VisTrak hi-speed camera systems is user verifiable.

i.e. you can see with your own eyes in the shot video playback the real vertical (ball LA) and horizontal (ball path) angles of the shot

plus club face angle at impact to the ball and club path.

Even ball spin can be user verified.

VisTrak LX2 Club detection

The VisTrak "LX2" is the world's only floor mounted launch monitor that captures top view frames of the club and ball

LX2 now with new top camera lighting to improve light spread over the club and ball.

You won't see club video playback images like the above on any other floor mounted launch monitor no matter what the price is.

The LX Launch Monitors can be used as a tracking system in a full golf simulator

All LX models function with E6, GS Pro, CG3 and TGC (and more) game software packages.

VisTrak LX2

post shot videos

VisTrak LX2 Ball Spin Detection

The LX detects ball spin rate using the ball logo or ball spin dots.

Spin Dot Balls

The problem with using the ball logo to detect spin is that the player has to bend down

and place the ball on the mat with the logo facing the camera for every shot.

Using spin dot balls with a 360 degree spherical dot pattern eliminates this requirement

LX/EV systems view balls from the side. Rotation is calculated around the center of the ball between frames

Note: The LX2 is for indoor use only and requires a connection to a 110/120v power outlet

and 2 USB3 camera cables connected to the PC

LX2 dual camera Club and Ball tracking Launch monitor.

with a true horizontal camera instead of just vertically mounted cameras

The LX2 offers full dual video shot playback from both the top and side mounted cameras

The VisTrak LX2 is the world's first and only launch monitor offering post shot video replay

of your shot from both side and top cameras

You won't find this feature on any other floor mounted launch monitor on the market today no matter what the price.

The "LX2 ex" additionally captures club face angle, club path and speed

The "LX2 ex" adds club tracking and more accurate ball path detection to the LX1

Data captured: Club face angle, club speed and path plus ball spin, speed, LA and path

Note: The LX2 is for indoor use only and requires a connection to a 110/120v power outlet

and 2 USB3 camera cables connected to the PC

VisTrak LX2 comparisons with other floor mounted Launch monitors

Recently, while finishing off the new LX2 features , I thought I'd check out what the competition to this product would be.

Starting off with the Uneekor Mini (with a list price of a whopping $4,500) I viewed the review videos.

Expecting to see really nice shot video playbacks of the club making contact with the ball from the top camera showing club face angle and path,

I was shocked to see that no such video playback of the club face angle at impact to the ball or path is anywhere to be seen or featured in the videos.

Likewise, the GC3 also doesn't detect club face angle or - from what we can gather at least - show any shot playback videos showing club face at impact to the ball

Maybe I'm missing something here, but I'm astonished why people are raving about systems that cost over 3 times the price of the LX2 ($1,699)

that doesn't even capture club face angle and path shot videos from a top camera.

Optional extra laser ball placement guide

$ 299

LX2 Software only

Purchase your own super hi-speed cameras and lights on Amazon

The software is geared to all those golf sim companies, entrepreneurs and DIY individuals that will be purchasing their own cameras

so that they can get up and running without having to spend a fortune on development and equally save an enormous amount of time.

Note: when purchasing the full LX2 or LX2 lite, this software is included

Software includes 1 18 hole golf course

$ 399

Summer special price

$ 299

Try it before you buy it

GSA Golf Control Panel Full version download

The full version VisTrak software can be used to evaluate the system with real time image processing

from sample shot videos sent to us frome customers.

Use the above download to install the full version Control Panel with sample shot videos.

Download includes sample shot videos of the SCX, EVi and LX2

Plus free Swing Capture software

Plus free 18 hole golf course game software

Great for evaluation with the GSA Golf Control Panel - playable with the mouse.

LX1 / LX2 compatible Game software

Game software options

--

-

-

Click above images to read more ...

GSA Golf VisTrak cameras function with all the above golf simulator course software

Please note that if you already own any of the above software systems and it was licensed for a tracking system other than GSAgolf

then you will have to contact the respective software company to have your license converted to GSA Golf systems.

VisTrak LX Setup

Click above button for installation instructions

Basic Operating instructions

Place ball as shown above in the launch zone area.

Wait until the you hear the "ball detected" beep or green LED strip light stops pulsing and turns constant ON,

and you're ready to swing.

LX2 to EVi conversion

You can also convert your LX2 to an EVi system simply by removing the horizontal external camera and mounting it on the ceiling.

Just add the track lights ($150), a new 12mmm lens and a 32ft USB3 extension cable.

Click above image to read more about the VisTrak EVi

LX2 to SCX conversion

Likewise, you can also convert your LX2 to an SCX all ceiling mounted stereo camera system

by removing the LX2 vertical camera and mounting it on the ceiling

Free Game software

GSA Golf 18 hole course game software included free of charge

Optional extra Game software

TGC 150,000 golf game software

TGC full version with over 150,000 courses $999

Single one time payment

Click above images to learn more...

E6 Connect golf game software

Click above image to learn more...

E6 Connect course software package $300 per annum

GS Pro game software

GS Pro $250 per annum

Click above image to learn more...

Creative Golf 3D

Other GSA Golf Vistrak systems

Click above to read more ...

GSA Golf KX systems

You may also be interested in our KX Launch Monitor series

LX2 to LX conversion

-

Converting the LX2 to a KX system just requires adding a monitor stand to it and placing the LX2 under it as shown above.

Click above to read more ...

Accuracy

VisTrak LX vs GC2 comparison results

Just in from independent tester Phil in the UK that has a GC2 and is running comparison tests with his VisTrak system

Putting

Vistrak 12.99 mph, GC2 13.0 2 mph

Vistrak 6.36 mph, GC2 6.0 3 mph

Vistrak 16.5 mph, GC2 17.3 mph

Chipping

Vistrak 49.73 mph, GC2 49.2

Full shots

Vistrak 80.37 mph , GC2 78.9 2 mph

Vistrak 78.63 mph , GC2 79.8 3 mph

Vistrak 87.22 mph, GC2 88.0 mph

GSA Golf system minimum PC requirements

-

Intel i5 or above Processor

Warning! Do not use PC's with AMD processors.

8GB RAM Nvidia 1070 Graphics Card or equivalent

25GB of Hard Drive Space

Windows 10 or 11 (Required)

Internet Connection

(Required if using 3rd party game software such as E6, TGC or GSPro)

2 X USB3 ports (Required)

Note: The cameras are USB3 cameras

and will only run at the correct speed when connected via USB3 cables directly to separate USB3 ports on the PC

Note: The LX2 is for indoor use only and requires a connection to a 110/120v power outlet

and 2 USB3 camera cables connected to the PC

Warning : Do not use Laptops

Laptop PCs are usually not powerful enough to run the cameras due to the limited band width of the USB 3 bus in laptops

and the gaming software (i.e. E6. TGC, Gs pro etc)

as the demand on the graphics card will be quite great and updating graphics cards on Laptops may not be possible.

Technical Support

Email and remote access support is available for all original purchasers of GSA Golf systems.

GSA Golf reseller inquirers welcome

Contact me - Martin - for details

Tel: 239 529 3060

International customers - Outside the US - Please note!

Please note: GSA Golf is not responsible for any import customs duties or brokerage fees that may be due for your order when arriving at the border.

All such customs duties and brokerage fees must be paid by the recipient.

There is also an additional $100 to $300 shipping charge

(depending on your country and weight of the product) for any product exported outside the US.

Warranty and Return Policy

Camera Warranty: 1 year

Return policy:

Returns must be made within 30 days and have a 15% to 20% restocking fee

Please read our legal notice via the link below regarding warranty periods and return policy

Note that a 15% to 20% re-stocking fee (depending on condition) will be charged in the event of a return

Customer is required to return the product at own expense. ie, GSA Golf do not send free return labels

Note: this 30 day return policy does not include 3rd party game software such as TGC,

enclosure items such as screens, flooring, drapes, panels etc.

i.e. it is solely for camera tracking systems

Please read our legal notice via the link below regarding warranty periods and return policy
