For those that prefer a portable system rather than it be fixed mounted on the ceiling,

the KX system others a viable alternative

where the LED IR light and camera is mounted on the underside of a PC monitor or speaker cabinet platform.

Featuring the VisTrak high speed club and ball tracking cameras

Data captured with every swing:

Ball launch angle, ball speed, ball azimuth (ball path), calculated ball spin rate,

club speed, club face and club path

The KX series

VisTrak KX installation video

Click above to see the VisTrak KX installation video

KX 2

Functions for both LH and RH players.

Just rotate unit on its wheels to switch from RH to LH and vice-versa

The KX features dual under table LED IR lighting panels.

KX 2 Dual camera system with vertical launch angle detection

The KX 2 runs both cameras on one PC

Height 46"

$ 2,799

Note: PC and Monitor not included

KX - V2

The KX V2 uses 2 VisTrak hi-speed cameras

allowing swing video playback from the lower mounted Vertical camera

showing vertical ball launch and club Angle of Attack.

As well as video playback from the top mounted camera showing club and ball data.

The KX V2 represents the ultimate in ball / club contact video analysis

Note: 2 PC's or LapTops are required to run the 2 VisTrak cameras in the KX V2

$ 2,999



$ 2,299

KX1 is the same as the KX2 but without the Vcam vertical launch detection camera

that is attached to the base of the system

Note: PC and Monitor not included

The KX can be used with a projector and impact screen for use as a golf simulator

or used as a stand-alone unit with the player viewing the game on the monitor

For those that don't want - or can't setup - a full golf simulator enclosure with projector and impact screen

the KX can be used as a stand-alone system using a net and viewing the game and shot analysis on the monitor

The KX used in a full golf simulator enclosure

Advantages of the KX over regular ceiling mounted systems

Suitable KX environments

In the home

On Driving ranges

In the Office

In the garage

You can use the KX in the home, office, garage or in a covered driving range.

The KX features video swing playback after every shot

The dual powerful IR LED panels in the KX produces bright images of clubs and balls in the swing video playback.

If using 2 PC's with the KX2-plus, the vertical camera shows club Angle of Attack and vertical ball launch in the video playback.

Note: 2 PC's are required to run the 2 VisTrak cameras in the KX2-Plus



Clear sharp images of the ball in the Vcam are achieved by setting the exposure time down to less than 300 micro seconds.

Note that only the top of the ball in flight has to be detected together with a ball launch position height

(automatically detected with every shot) in order to precisely measure ball vertical launch angle with the KX2.

The KX Lite series is less expensive than the regular KX series due to the less expensive monitor stand.

The VisTrak KX Lite has the same functions and cameras as the regular KX1 and KX2

but with a lighter monitor stand (7lbs instead of 45lb).

KX 1 Lite

pre-assembled

$ 1,899



KX 1 Lite (ar)

Assembly Required

Super easy assembly - just unpack the monitor stand and assemble as per the instructions

and screw on the 2 IR Led CM Vision lights and the camera to the underside of the monitor stand.

1,199.00

(US sales only - contact us for shipments outside the US)



KX 2 Lite

pre-assembled

$ 2,399

KX 2 Lite (ar)

Assembly Required

$ 1,699

(US sales only - contact us for shipments outside the US)

KX 1 Lite (ar)

Assembly Required

with TGC game software

$ 1,999

(US sales only - contact us for shipments outside the US)

KX 2 Lite (ar)

Assembly Required

with TGC game software

$ 2,499

KX AR assembly

Super easy assembly - just unpack the monitor stand and assemble as per the instructions

and screw on the 2 IR Led CM Vision lights and the camera to the underside of the monitor stand as shown below

KX LED Lights and camera mountingl

KX 2 Lite lower camera mounting



Each VisTrak KX system comes with an E6 Connect

18 hole golf course and driving range (currently unlimited) trial software package

Add the TGC 2019 software for just $999 extra

"Frankly, I'm over the moon about my new VisTrak KX model.

Of all the systems I've designed, this is by far my favorite.

I use it every day at my home too. No need to setup a screen, projector and enclosure.

Just wheel it into the garage and hit into a net while watching the game on the monitor."

Martin Gardiner. GSA Golf founder.

Single stance mat and fairway grass panels with the rubber foundation

KX - What's in the Box

GSA Golf system minimum PC requirements

Intel i5 or above Processor

8GB RAM Nvidia 1070 Graphics Card or equivalent

(Dedicated GPU with DirectX 11 Support)

25GB of Hard Drive Space

Windows 10 (Required)

Internet Connection (Required)

When using VisTrak systems - Native USB3 ports (Required)

( i.e. no add-on PCie USB3 adapters for PCs that don't come with USB 3 ports as standard )

KX Laptop

KX Software Installation

The KX2 consists of 2 cameras

1. VisTrak high speed camera (that is mounted under the table top)

2. Vcam vertical launch camera (this mounted at the base of the unit)

The KX1 has just the VisTrak camera

The KX uses the same camera as the VisTrak Eagle

so please install all the Control Panel and camera drivers shown on the VisTrak Eagle installation page

First read the above VisTrak Eagle insallation page

-

Also, as the KX setup is essentially the same as the VisTrak Eagle,

check out the above VisTrak system check list and Real Customer issues pages.

Select VisTrak KX1 in the Setup window

In the camera panel of the CP , ensure that camera 1 is the Vcam camera

( the lower level camera on the unit)

and that camera 2 (the VisTrak camera is under the table top) is the VisTrak camera.

With the KX2 system camera 1 is the Vcam camera ( the lower level camera on the unit)

and camera 2 is the VisTrak camera (the VisTrak camera is under the keyboard shelf)

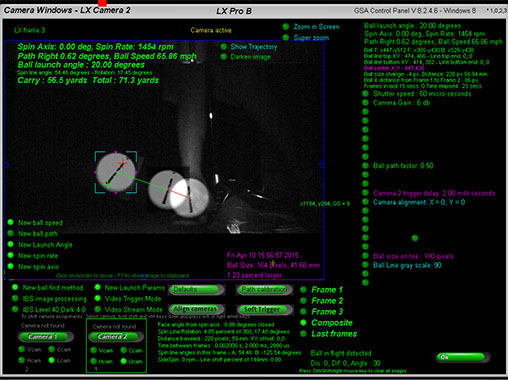

The camera settings for the Vcam window are as above.

Select camera 1 to see these settings in the CP's camera panel

The camera settings for the VisTrak cam window are as above.

Select camera 2 to see these settings in the CP's camera panel

Checking the launch zone area

Place a golf ball on the usual hitting position.

Run the camera in Video Stream mode to properly focus and aim the cameras at the ball

so that the ball appears in the center of the screen.

KX ball path adjustment

VisTrak KX perspective correction

Depending on the launch angle of the ball, the ball path will appear in the camera to go further to the left although the path was actually dead straight.

This is because the camera is viewing the ball from an angle.

The KX Ball path correction factor fixes this issue.

The factor is based on the launch angle of the ball and only has to be set once for all shots as the correction is dynamic.

Putts and very low shots require little or no correction, whereas high shots will require far more.

The precise factor will depend on how the camera is mounted under the monitor stand and at what angle it is viewing the ball.

To set the ball path correction factor,

strike a straight shot with a high lofted club and adjust the factor slide bar until the ball path is zero.

Note: This feature is only available on CP versions 9.6.3.1 and higher

KX top camera extension

In order that the KX top camera views the ball directly over and down on the ball instead of at an angle,

KX users can add this free camera swing arm extension.

The advantage is that there's no ball path correction required and ball path in the video playback is shown exactly as played.

The KX Vcam

Select camera 1 in the Control Panel to view the Vcam images.

Monitor stands

If you'd just like to purchase the monitor stand only
