VisTrak: hi-speed camera club and ball tracking system

--

1. VisTrak Eagle - $1,999 - base version $999

Single ceiling mounted camera system - ball speed and path, club face angle, path and speed - video swing playback - functions for both LH and RH players

Includes 4 IR LED panels and remote access installation and support

2. VisTrak Vcam - add-on to the VisTrak Eagle for more precise measured vertical launch angle detection and ball speed. $999

Single vertical launch angle camera, floor mounted, functions for both LH and RH players without having to move the unit

3. VisTrak EV - VisTrak Eagle plus Vcam vertical launch angle detection camera with IR LED lighting from $2,999

Combo VisTrak Eagle with Vcam and IR LED lighting

4. VisTrak Spin cam - add-on to VisTrak EV, Hi-res / Hi speed ball spin camera with IR lighting. $999

5. VisTrak LX - floor mounted launch monitor with IR lighting. $1,699

Remote access installation and support included - 4 IR LED panels included

VisTrak quick price overview

VisTrak quick function overview

-

Swing video playback after every shot in game software such as E6 and TGC

---

While the VisTrak camera is a ball and club tracking system in its own right

that can be used as a stand alone golf simulator using E6 and TGC game software,

the VisTrak camera and software also integrates with any other launch monitor or golf simulator on the market

to provide video swing playback analysis after every shot.

VisTrak Shot Video Playback

The world's first truly affordable hi-speed camera club and ball tracking system

The comprehensive VisTrak Control Panel allows the user to adjust all camera and shot settings

Destined to be the all time number one selling high speed camera tracking system on the market

VisTrak Eagle Base

$ 999.00

Price includes lens, camera mount, full version control panel software for use as a fulll club and ball tracking system

in a golf simulator.

System includes video swing playback camera system for shot analysis.

Golf course game software included

Lighting not included. No remote access installation or support included.

Functions with TGC and E6 Connect software and more

VisTrak Eagle ceiling mounted without lighting and with standard case and mount

Price includes 15ft USB 3 cable and 15ft USB3 extension cable for a total length of 30ft

$ 1,999.00

Functions with TGC and E6 Connect software and more

VisTrak Vcam floor mounted Vertical launch angle camera Add-on to VisTrak Eagle

Price includes USB over Cat cable for a total length of 25ft

$ 999.00

VisTrak Vcam in carry case

The carry case option for the Vcam is pre-drilled for the Spin Camera

so that you can add the spin camera at a later date.

$ 1,299.00

VisTrak Eagle + VisTrak Vcam + IR Lighting

Data captured:

Ball speed, ball path, ball launch angle

Club speed, club path,club face angle

Calculated ball spin and spin axis

Functions for both LH and RH players without having to move any cameras.

Includes video swing playback after every shot.

Functions with TGC and E6 Connect software and more

$ 2,999.00

The Spin cam is a hi-resolution camera that - when used in conjunction with the hi-res Vcam camera -

can calculate spin rate from the two images.

Add the Spin cam with the IR LED lighting to the Vcam

$ 999.00

Contact us to purchase

The Vcam B is the same is a Vcam plus Spin cam but mounted in a carry case

$ 1,999.00

Contact us to purchase

VisTrak LX 1 high speed camera launch monitor

$ 1,699

VisTrak LX 2 dual camera launch monitor

$ 2,299

VisTrak Stereo Bar

VisTrak Stereo Bar - The VisTrak Stereo Bar system combines the stereo cameras with the VIsTrak Eagle

mounted on a light, easy to mount bar.

The stereo cameras measure ball Launch angle.

The VisTrak camera measures ball speed, ball path, club face angle, club speed and path.

The VisTrak Stereo Bar system offers all the functions as the VisTrak IR V Stereo does

but - due to its external lighting - can be offered at a far lower price.

$ 3,699.00

VisTrak IR

VisTrak Eagle with integrated IR lighting panel

VisTrak IR

$ 2,499

Price includes 15ft USB 3 cable and 15ft USB3 extension cable for a total length of 30ft

The new VisTrak IR features 4 IR LED boards, cables and power, Laser type LED ready indicator and the VisTrak camera all in one slim line light case.

You can add the additional Vcam C of Stereo V cameras for vertical launch detection at a later date if required

VisTrak Stereo

VisTrak Stereo - The VisTrak Stereo system combines the stereo cameras with the VIsTrak IR in the same case.

All cameras and lights are built into the ceiling mounted case.

The stereo cameras measure ball Launch angle.

The VisTrak camera measures ball speed, ball path, club face angle, club speed and path.

$ 4,499

VisTrak KX

VisTrak KX

For those that prefer a portable system rather than it be fixed mounted on the ceiling,

the LED IR light and camera can be on a PC monitor or speaker cabinet platform.

Click above to read more about the VisTrak KX

$ 2,999

Contact us to purchase

PC requirements.

Important ! USB 3 only

The VisTrak camera is a USB 3 camera and must be connected to a USB 3 port on your PC.

You can identify a USB 3 port by the SS symbol next to the port

The VisTrak hi-speed camera will require a PC that is capable of running hi-speed cameras.

While most good desktop gaming PCs featuring i5 or i7 CPUs can do this, laptops are not suitable.

Price includes 15ft USB 3 cable and 15ft USB3 extension cable for a total length of 30ft

VisTrak Base Lighting options

VisTrak IR LED panel

Separate or Replacement LED 800 Panel

$ 1,399

Note: If purchasing the VisTrak IR this LED panel is already included

Please note!

Due to supplier component shortages, all VisTrak IR Panel products are not available until mid January 2021

VisTrak Base IR LED 4 lamp set

$ 299

If purchasing the VisTrak Base, you'll require at least 4 powerful IR LED lamps

These lamps are available from Amazon or other suppliers for a slightly lower price

or purchase direct from us with free shipment within the US

VisTrak Game Software

Each VisTrak system comes with a single 18 hole course GSA Golf software package and a driving range

plus you get a free 1 year trial E6 Connect 18 hole course package.

E6 Connect

18 hole golf course and driving range software package

plus GSA Golf 18 hole course software and driving range

* Note that the free E6 Connect 18 hole course and driving range is a max 1 year trial only

Integrated video swing playback after every shot on the VisTrak Driving Range

Optionally display the VisTrak swing playback video after every shot in E6 and TGC game software

Play a complete round of indoor golf with just the stand alone GSA Golf VisTrak Eagle system

or add the VisTrak to your existing launch monitor or any other golf simulator

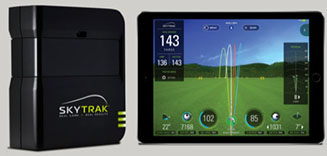

(i.e. GC2, GC Quad, GC hawk, SkyTrak, Trackman, FlightScope, OptiShot, p3proSwing etc...etc..)

to capture real time video of your swing showing precise club and ball data after every shot.

Confused ? Not sure what system to buy ?

Start with just the VisTrak Eagle or VisTrak IR first.

You can add on more cameras as and when requirements arise and/or budget allows

Recent customer comments

Hi Martin, I just wanted to drop you a note to say how amazing the new VisTrak camera is.

I am still playing around with the settings and learning but the video capture and being able to see the frame by frame impact is awesome!

I also really like the way you show the ball ready/playback buttons as an overlay on the TGC.

The best part of my day is going to the tech page and seeing your latest updates - keep up the good work!

Richard L. Illinois 12/17/2020

Hi Martin- I wanted to let you know how much I appreciate your efforts.

I could have bought any of the expensive and well-known golf simulators, but I’m glad I ultimately took the chance and bought your products.

It wasn’t an easy decision, as it takes a leap of faith to take the road less traveled, but it has made all the difference.

I love that your products are not perfect (no one's are) but that you strive for perfection while pushing innovation.

You’re clearly never satisfied. As soon as you develop a new software feature, or build a new camera system, you're immediately back at it working on the next iteration.

You’re a true inventor and engineer. Almost every day I download the latest beta and see how it enhances the simulation.

It's like Christmas morning everyday.

Sometimes there’s a marked improvement. Sometimes the new feature “breaks” something else.

But over days and weeks, I feel how the collective innovations are improving the overall experience.

Your products aren’t for everyone but they are a clear alternative to the high-margin corporate products that have an arm's length association with their user base.

Buying a GSA product is buying into you and becoming part of your user community.

You listen, you care, and you explore. I know many of us appreciate it but perhaps not enough of us say thanks.

Martin, thank you for an enjoyable and rewarding journey with your products in 2020.

You’ve made a COVID 19 year more endurable.

Eric P. Burien, WA 12/25/2020

Matt P. 1/15/2021

Hello Martin, I have had 2 weeks of excellent play and stability in Eagle Mode! This has been very enjoyable! Matt T.

Matt T. 1/14/2021

Hi Martin, I see your daily updates on the Tech News page and I just want to say thank you for all your hard work and dedication.

Your passion for golf and engineering clearly shows and thank you!

The VisTrack system uses a single high speed camera to capture club face angle, club speed,

ball path and ball speed with video swing playback.

The video play back features 32 frames of the club swing before, at and after contact with the ball.

The video will show club path, speed and face angle plus ball path, ball spin rate and speed.

Note that the VisTrak system - in contrast to other camera based launch monitors -

can be used for both left and right handed players !

Video Swing playback

The above image shows a typical VisTrak video screen shot.

When the video playback is run, you can see the club path, face angle, ball on club contact and ball direction precisely in every frame.

VisTrak's swing playback videos show your club path, speed and face angle plus ball speed and direction

in slow motion for every shot.

See video playback of your swing after every shot showing club face, path and speed, ball speed and direction.

If you're working on your game, then the VisTrak will be an invaluable aid.

Are you a golf pro instructor ?

If so you'll love the VisTrak's video swing playback feature showing every step of the swing before and after impact

in super slow motion or in frame step mode.



Over 500 videos can be stored and retrieved


VisTrak video playback controls

The new VisTrak video playback window features the following video controls:

Go to end, go to start, run at full speed, 1/2 , 1/4, 1/8, 1/16 and 1/32 speeds

Stop, Start, fast forward and backward, loop, save and load.

The new VisTrak USB3 camera captures images at over 600 frames per second using the standard frame grabbing timing

At 600 plus fps, images of the club are captured every 8cm (3 inches) at a club swing speed of 100 mph

and images of the ball are captured every 16 cm (6 inches) at a speed of 200 mph.

And VisTrak's image processing software measures all club and ball data in real time!

VisTrak functions for both left and right handed players

VisTrak Putting

Video playback shows exactly how the club struck the ball and the ball path.


VisTrak voice audio

VisTrak voice audio system and club messages now available

VisTrak club:

path into-out or out- to-in and face angle in degrees

VisTrak messages :

"Looking for ball", "Ball detected - waiting for swing" etc.

These voice feedbacks are optional and can be individually switched on or off in the VisTrak window


VisTrak runs and interfaces with E6, E6 Connect, TGC, Perfect Parallel, Red Chain and ProX game software

Each VisTrak system comes with an E6 Connect

18 hole golf course and driving range software package

* Note that the free E6 Connect 18 hole course and driving range is a max 1 year trial only

add The Golf Club full version software with

150,000 courses for just

$ 999

VisTrak systems run with all the above software options

All VisTrak systems come with 2 standard single 18 hole golf course game software packages

and the VisTrak Driving Range at no extra charge.

Note that every hole in the standard software can be used as a driving range too!


VisTrak Installation


PC requirements.

Important ! USB 3 only

The VisTrak camera is a USB 3 camera and must be connected to a USB 3 port on your PC.

You can identify a USB 3 port by the SS symbol next to the port

The VisTrak hi-speed camera will require a PC that is capable of running hi-speed cameras.

While most good desktop gaming PCs featuring i5 or i7 CPUs can do this, laptops are not suitable.

Please note !

GSA Golf does not guarantee that the system will function with an older PC that does not feature a USB 3 port from the manufacturer

and which has to be upgraded with an an add-on PCIe USB3 adapter.

Current max VisTrak cable length is 32ft

GSA Golf system minimum PC requirements

Intel i5 or above Processor

8GB RAM (16 GM recommended)

Nvidia 1070 Graphics Card or equivalent

(Dedicated GPU with DirectX 11 Support)

25GB of Hard Drive

Windows 10 - 64bit (Required)

Internet Connection (Required)

When using VisTrak systems - Native USB3 ports (Required)

( i.e. no add-on PCie USB3 adapters for PCs that don't come USB 3 ports as standard )

Please note - GSA Golf camera systems are not plug'n'play

GSA Golf camera systems have to be setup and that this setup procedure may take some time to complete

for those with limited technical abilities.

Check the above link to read more.


VisTrak Q & A



Order cancellations

Please be sure you know what you purchasing before using the credit card buy now buttons on this page.

If you you use your credit card to purchase an item and then later cancel the purchase, a 3% credit card refund fee will be charged.

i.e. that's the 3% we have to pay for the transaction.

Can I return the product for a refund if I'm not satisfied ?

Unfortunately GSA Golf (presently at least) is only a small company (i.e. we're not Amazon.com) and so can't offer any immediate refunds

However, we can offer to re-sell your returned product at a lower price - depending on condition - at some later date.




VisTrak Free Game software

Each VisTrak system comes with an E6 Connect

18 hole golf course and driving range software package

In addition

VisTrak Driving Range

Multiple ball tracjectory traces with 3D grid

VisTrak Driving Range - with built-in swing video playback

Video swing playback is built into the VisTrak driving range.

This saves you from having to switch applications (i.e. from game software to the VisTrak control panel and back)

after every shot wanting to view the swing video.

Nearest to Pin and Longest Drive contests.

In addition to all that

GSA Golf single 18 Hole golf course software package is included

VisTrak Example swing playback videos

GSA Golf partner Keith made a set of 8 example swing playback video files that you can try out (even without having a VisTrak system).

Go to the lower half of the VisTrak installation page to download and play these swing playback videos.

VisTrak Beta Test Development Videos

Note that these videos are not supposed to be professional product promotional videos as such but do give

an insight into what stage of development the VisTrak system is in at present.



We'll be producing a number of VisTrak videos soon.

Click above to view a VisTrak chipping video

The above are some first VisTrak Beta version videos done by GSA Golf partner Keith.

Note that Keith is left handed so shots seem reversed if you are a right handed player.



Hi! I'm Martin Paul Gardiner

Electronics and software development engineer and founder of GSA Golf

Regularly check out my tech news page for all our latest developments and free updates

if you have any questions

please feel free to contact me personally anytime from M to F 10am to 3pm US ET

GSA Golf reseller inquirers welcome

Contact me - Martin - for details
















All camera products Club Tracking Camera Ball spin camera VisTrak systems DIY Kits - Components Enclosures All products PX Systems Software Business Installation and setup
