Try it before you buy it

Full Version GSA Golf Control Panel software download

The full version VisTrak software can be used to evaluate the system with real time image processing

from sample shot videos sent to us frome customers.

Download includes sample shot videos

Plus free Swing Capture software

Plus free 18 hole golf course game software

Great for evaluation with the GSA Golf Control Panel - playable with the mouse.

How to install the CP (Control Panel) full version and update

Double click on the downloaded CPupdate file in the Downloads folder on your PC

Even though Windows will complain about it, rest assured that the download presents no threat

And off you go

Browser or Anti Virus blocking the download?

If you see the above message when clicking on the Download link,

click on the "See more" button

and then click the option "Keep anyway"

Chrome blocking the download?

After the download, best to switch back to at least Standard Protection

From what we gather, Google's new policy is to block all exe file downloads from websites that are not on their trusted "White List".

So until then, all users wishing to download the latest CP updates may have to go through the above shown process.

Note: do the above procedure after the download has completed and you get the "blocked" message from Google Chrome

Even then, your Virus Protection software will probably be complaining about it too.

Click the "Trust Now" in this case.

You may also have to temporarily switch off Windows Defender

Sometimes Windows Defender is controlled by your anti-virus software.

In this case you'll have to temporarily disable your ani-virus too.

Note that you can also try the zipped download links as zipped files should be able to avoid any virus protection blocks

Please note: We guarantee there is no Virus in our software downloads what-so-ever.

We are an honest and trustworthy company and our only aim is to provide great software for use in your golf simulator.

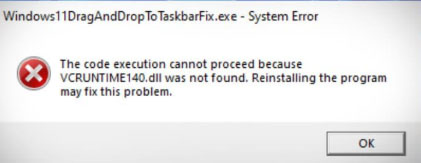

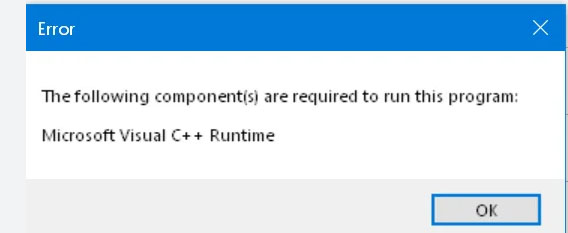

VC redistributables

If not already installed on your PC, you may require these VC (Visual C) files

Download VC redistributables hereHere

and run the installation

Don't forget to run the download after it's downloaded!

A number of customers don't realize that a CP update is a dual process

i.e first download and then run the download

Note that anti-virus programs will probably try to block the GSA Golf CP update download but - be assured - there's no malicious software in the download update

so just ignore any warnings from your anti-virus programs and choose the "More options" and "Run anyway" option.

GSA Golf Control Panel Full version download

Use the above download to install the full version Control Panel with sample shot videos

for first time installations on new PCs.

VC redistributables

If not already installed on your PC, you may require these VC (Visual C) files

Download VC redistributables hereHere

and run the installation

Game software

GSA Golf 18 hole course game software included free of charge with every GSA Golf tracking system

Click above image to download the 18 hole GSA Golf game software

d3dx9_30.dll

You will require the above additional file to use the GSA Golf game software

Click the above image to download the d3dx9_30.dll file

copy the d3dx9_30.dll file to your C:\Windows\SysWOW64 folder.

Sample shot videos

For those that are installing the software for the first time or experimenting with the setup,

you may be interested in viewing the sample shot videos.

To view and run the sample videos. go to the VisTrak Videos panel in the Control Panel

and click the "Load Sample Videos".

Select video 1, 2 or 3.

Note that when loading the sample videos, the system type will change to match the shot video.

Video 1 was generated from an SCX system and Video 2 from an EVi/LX2 system

Sample Video 1 is from a stereo camera SCX system

Sample Video 2 camera 1 is from an EVi system showing the overhead view of the club striking the ball

Sample Video 2 camera 2 is from an EVi system showing the side view of the club striking the ball

Please note that sample videos were made by independent customers running the cameras at just 800 fps.

When running the cameras at the full speed of 1520 fps, you will get double the number of frames.

Sample Video 3 is from an LX2 system (at 1500 fps) showing the top and side views of the club striking the ball

How to run the sample videos

1. Select the VisTrak video from the Contro Panel's main panel

2. Click on the "Load Sample Videos"

Note: if you're running the system without cameras pluged in, then the sample videos will be automatically loaded

The cross hairs show the angles

You can also run both camera shot videos simultaneously

The dual shot video can run as an overlay over your game software after ever shot

Note that all data shown in the sample videos is re-calculated in real time when loading the videos

i.e. it's not stored in the videos

This means that the data will change if you change any of the settings.

Re-loading the video will set the settings back to what they were before you made any changes

so you won't get lost

Like what you see?

Purchase this software to run with your own purchased cameras for just

$199

World's first and only golf simulator camera tracking software

for use with low cost commercially available hi-speed cameras

GSA Control Panel (CP) full version

with 2 camera licenses

$ 399.00

with 1 camera license

$ 199.00

The GSA Golf camera tracking software can be purchased separately for those that are purchasing their own cameras.

1500 fps Cameras are available on Amazon for $280 each.

All additional products required to build your own high-speed golf simulator camera tracking system are available on Amazon.

Including cameras, cables and lights.

Let us know the serial number of your camera(s) so that we can register it/them in your software download.

Purchase the software with Hi-speed Cameras

$699 each

GSA Golf Hi-speed (1500 fps) ball and club tracking cameras with mounts, lenses, cables and software

Just add your own IR LED or Track Lighting

Price $699

Usually ships within 24 to 48 hours

Only 1 to 2 cameras required for full ball and club tracking

Buy with 2 cameras and save

Price $1,199

Using 2 cameras allows you to make up an SCX, LX2 or EVi system

Need technical help?

Installing TeamViewer

If you require remote access support, you need to have TeamViewer installed on your PC.

Go to www.TeamViewer.com and download the free version of TeamViewer

When calling us for a remote access support session, have your TeamViewer up and running with your ID and Password being displayed.

Technical Support

GSA Golf system minimum PC requirements

-

Intel i5 or above Processor with a desktop gaming PC

Warning! Do not use PC's with AMD processors or Laptops!

8GB RAM Nvidia 1070 Graphics Card or equivalent

25GB of Hard Drive Space

Windows 10 or 11 (Required)

Internet Connection

(Required if using 3rd party game software such as E6, TGC or GSPro)

USB3 port (Required)

Note: The cameras are USB3 cameras

and will only run at the correct speed when connected via USB3 cables directly to separate USB3 ports on the PC

Warning

If using 2 cameras, do not connect the cameras together with a Hub !

All cameras must be directly connected to separate USB3 ports on the PC

Use only the supplied powered USB3 extension cables

Warning : Laptops not recommended

Laptop PCs are usually not powerful enough to run the cameras and the gaming software (i.e. E6. TGC, Gs pro etc)

as the demand on the graphics card will be quite great and updating graphics cards on Laptops may not be possible.
