VisTrak Launch Monitor Overview

Similar product market overview

Click above button to see how VisTrak systems compare to others

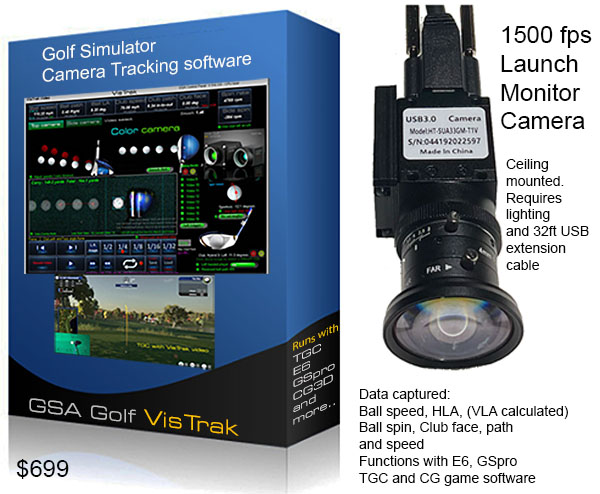

Tracking system Kit components

Single hi-speed tracking camera with software

Price includes lens, 5ft USB3 cable and mounting hardware plus CP tracking software

$699 each

Optional extras

USB3 32 ft powered extension cable

Highest quality USB 3 15ft active powered Extension Cable

$45

Lighting options

Lighting track with green LED light bar

Price includes track with 4 LED lights, green system ready led strip, mounts and cables

$249

LED IR Lights

$ 349

with adapted 10 to 15 degree narrow beam lenses.

Note that the standard CM Vision CM24 850nm wide angle beam light does not work with the VisTrak SCX cameras

Normaly 2 required for use with an SCX setup

Sourcing your own components

DIY Shopping List

Your VisTrak DIY Shopping List

GSA Golf CP camera control and image processing software :

$299

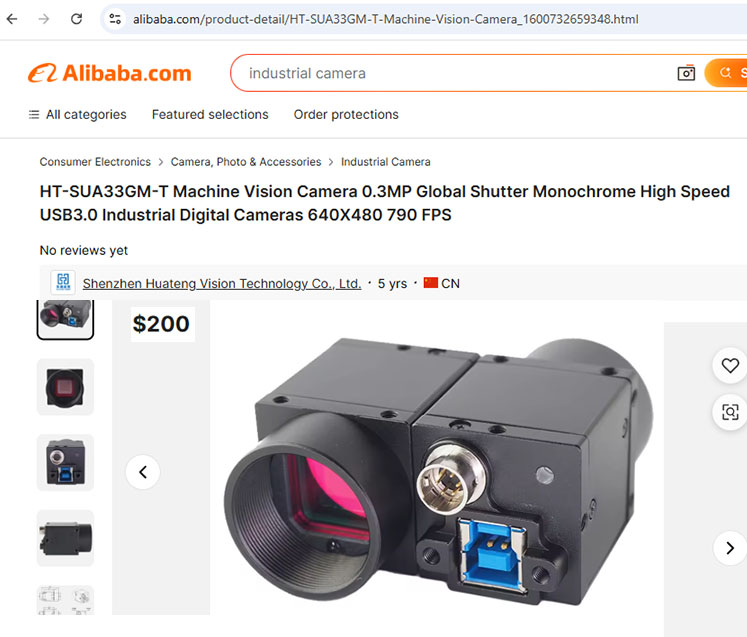

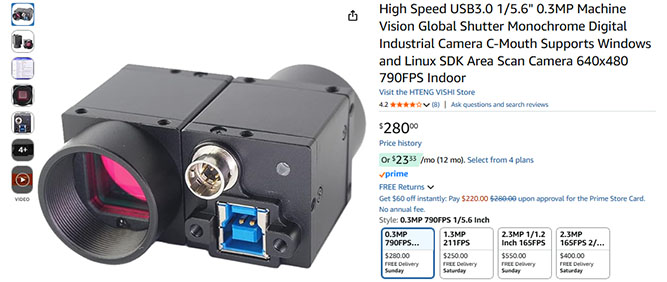

2 x Camera :

$280 each

(available on Amazon - Note only select Monochrome cameras. Color cameras don't work with IR light)

2 x camera mounts

$20 each

(available on Amazon)

2 x Marshall 12mm 4512 lenses

$19each

(available on Amazon)

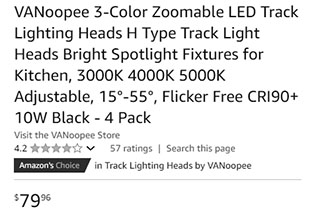

LED 4 x track lights :

$80

(available on Amazon)

2ft long track and live end with cable

$38

(available on Amazon)

4 x Speaker mounts to mount the cameras on the ceiling or track

$10

(available on Amazon)

2 x USB3 32 ft powered extension cable

$40 each

(available on Amazon)

Total DIY price: $1,058

Assembly instructions for ceiling mounted cameras

i.e. SCX, Eagle, EVi

Track Lighting

Instead of expensive IR LED lighting, you can also use LED track lighting.

All lights have to be set to 5000k

Put the 1/4" black bolt supplied with the speaker mounts into the speaker mount adapter.

Put a star washer on the protruding bolt end and screw tightly into the camera mount adapter.,

You can either mount the cameras directly on the track or separately on the ceiling.

For the SCX, the cameras should be mounted 2ft apart.

IR lighting

For those that would prefer IR LED lighting

then 2 CM Vision CM24 IR 850nm lights will be required

$80 each

with adapted 10 to 15 degree narrow beam lenses.

In order to adapt the standard CM24 IR light with narrow beam (15 to 25 degree) lenses

you will have to purchase the narrow beam lenses on Amazon,

open up the CM24 (just 4 screws) and replace all wide angle lenses with the new narrow beam lenses.

The old lenses just twist off

You will require 24 narrow beam lenses per CM24 IR 850nm light for a total of 72 lenses.

Cost on Amazon for the lenses will be around

$70

for the 72 lenses ($7 per pack of 10).

It takes a while to un-twist all the original lenses and replace them all with the new narrow beam lenses

but without this,

the light intensity from the standard CM24 with wide angle lenses won't be sufficient to capture hi-speed frames of the ball and club.

DIY SCX IR

Parts list:

as above but add $799 for the SCX case

Floor mounted launch monitors

DIY LX1

Parts list:

1 x GSA Golf single camera license ball and club tracking software

1 x Hauteng Vision camera wtth mount and 1.8 mm lens

2 x CM vision 12 LED IR lights with the lenses removed

2 x 3 amp 12v power supplies

$690

DIY LX2

Parts list:

1 x GSA Golf dual camera license ball and club tracking software

1 x Hauteng Vision top camera wtth mount and 2.1 mm CS lens

1 x Hauteng Vision bottom camera wtth mount and M12 1.8 mm lens with CS M12 adapter

3 x CM vision 12 LED 850nm IR lights with the lenses removed

3 x 3 amp or 1 x 8 amp 12v power supplies

or 1 x 8amp 12v power supply with 3 way splitter cable

$1,090

Optional extras

Optional extra laser ball placement guide

Laser automatically switches off when ball is located.

Indicates to user that the ball has been detected in the launch zone area on the mat and ready for swing

System comes with control circuit board, GPIO cable, power supply and mount

$ 299.00

(only available via GSA Golf on the accessories page - click above image)

Optional extra green LED light bar

$ 99.00

System comes with control circuit board, GPIO cable, power supply and LED stick-on strip

(only available via GSA Golf on the accessories page - click above image)

Laser, LED strip control box with full power and control cabling for SCX/ LX2 DIY customers

For DIY customers, the wiring of the SCX and LX2 can be quite time consuming.

This unit greatly simplifies the process and includes the Laser and LED strip with control circuitry

$ 399.00

(only available via GSA Golf on the accessories page)

Camera GPIO wiring diagram for DIY customers,

click above image to read more...

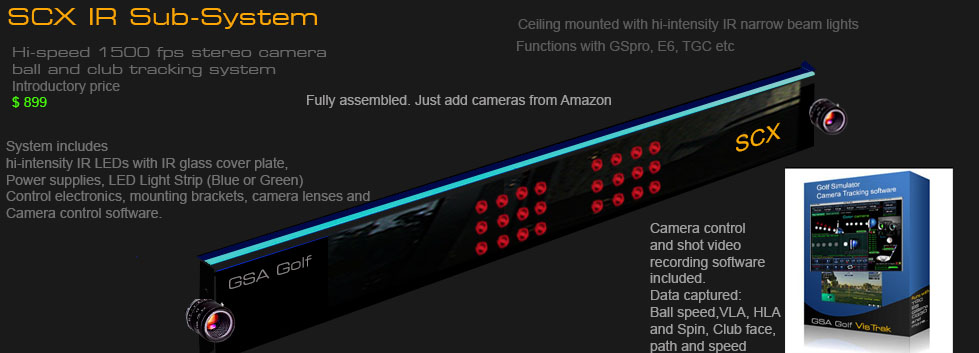

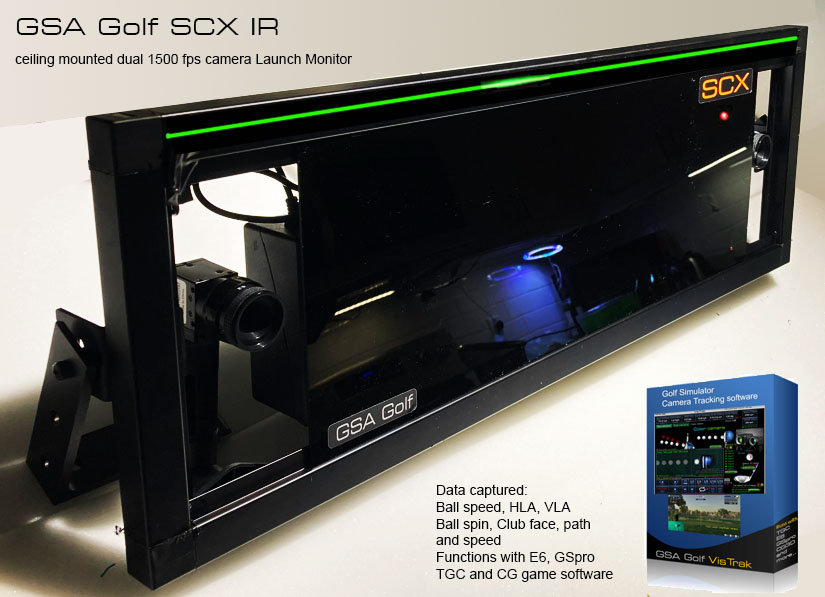

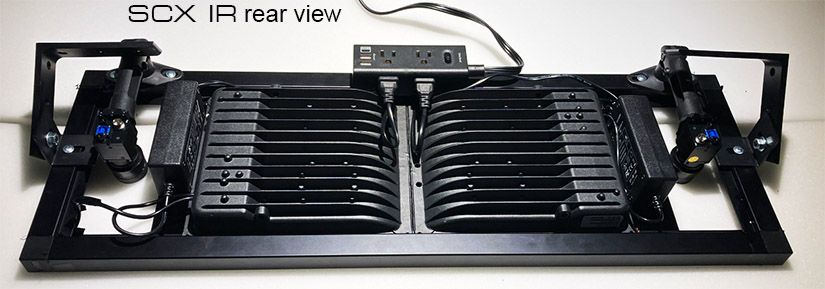

Optional extra SCX casing

Ready made SCX casing frame with IR acyrlic glass panel and green LED strip ball detected / ready for swing indicator.

All fittings, laser and dual LED IR panel power supply included

$ 899.00

IR LED Lights not included

As above but with IR lights

$ 1,499.00

IR LED Lights included

Ready made base SCX casing frame with IR acyrlic glass

without IR LED Lights, laser, control box and power supply

$ 499.00

Optional extra LX2 casing

Ready made LX2 casing frame with IR acyrlic glass panel, 18" goose neck top camera flex mount

and green LED strip ball detected / ready for swing indicator.

All fittings and power supply included

$ 899.00

LED IR lights not included

(only available via GSA Golf on the accessories page )

$ 1,299.00

LED IR lights included

Ready converted narrow beam

IR lighting for SCX systems

$349 each

with adapted 10 to 15 degree narrow beam lenses.

Note that the standard CM Vision CM24 850nm wide angle beam light does not work with the VisTrak cameras

without the conversation to narrow beam.

(only available via GSA Golf on the accessories page )

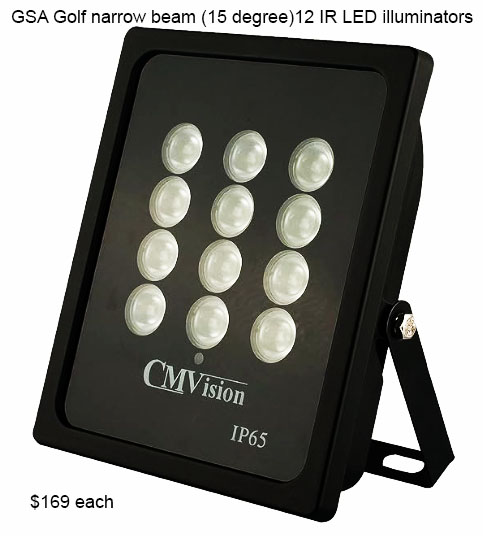

Ready converted narrow beam

IR lighting for LX systems

with adapted narrow beam lenses.

Note that the standard CM Vision CM12 850nm wide angle beam light does not work with the VisTrak LX2 cameras

without the conversation to narrow beam.

(only available via GSA Golf on the accessories page )

$120 each

2 are required for the LX1

3 are required for the LX2

World's first and only golf simulator camera tracking software

for use with low cost commercially available hi-speed cameras

For those that would like to use their own sourced cameras

Our CP software license is $399 for use with 2 cameras

The base price for the Control Panel Software is a one time fee

Your camera serial numbers or PC Machine ID must be registered with GSAGolf for use

Hi-speed (1500 fps) cameras cost around $300 each on Amazon , IR Lighting $99 each (2 to 3 required), cables around $30

GSA Control Panel (CP) full version

with 2 camera licenses

~~$ 399.00~~

Special limited time offer

$ 299.00

The GSA Golf camera tracking software can be purchased separately for those that are purchasing their own cameras.

1500 fps Cameras are available on Amazon for $280 each.

All additional products required to build your own high-speed golf simulator camera tracking system are available on Amazon.

Including cameras, cables and lights.

The software allows you to build your own camera tracking system

including: SCXi, VisTrak Eagle, LX2, LX1, EVi and KX

The software is geared to all those golf sim companies, entrepreneurs and DIY individuals that will be purchasing their own cameras

so that they can get up and running without having to spend a fortune on development and equally save an enormous amount of time.

300 DPI Glossy brochure

Golf Simulator Game Software

E6, TGC, RedChain, GS Pro, Creative Golf 3D and ProX

Game software options

Click above images to read more ...

GSA Golf VisTrak cameras function with all the above golf simulator course software

Custom Control Panels

We can also make a custom camera Control Panel for your own specific requirements and needs

Hourly programming rate is $35.00

One time setup for your own version of the CP

$1,000

Contact us for further details

Full assembly instructions supplied

GSA Golf cameras run at 1500 fps!

Click the above image to see all GSA Golf components

Make 15% markup on Referral sales

If you have a potential customer that is in the market for a system similar to one of our VisTrak camera systems

but you don’t wish to either stock our systems or process the order yourself,

then send us the customer’s contact information and – if the contact results in a sale - then you earn 15% on the sale.

This way there is zero risk for you.

Should a sale result from the contact you send, we will send you the 15% markup.

To ensure that you receive the 15% markup,

we will send you a legally binding signed agreement by us stating that we will pay the 15% markup

to you in the event of a sale within 90 days for every contact you send.

If you don’t hear back from us within 90 days,

you can then check back with the customer to see if a sale was made with your customer

and thus hold us in contempt of the agreement if you didn't receive your 15% markup.

Note that this offer is also available to any purchaser of a GSA Golf VisTrak system purchased at the current prices

no matter if you are an official golf simulator reseller or not.

Name Branding

You can even brand our systems as your own without any additional cost

All our logos and company names can be replaced by yours!

Name branding frees resellers from published GSA Golf VisTrak prices

You can thus set your own markups (the skies the limit) on any or your own branded VisTrak product.

We also offer free customer support for branded products

Custom Control Panel software

We can make a separate version of the GSA Golf Control Panel just for you

that can be custom modified to suit your specifications.

A one time payment of $1,000 is required for this work.

Further custom modifications are charged at the rate of $35 per hour

Reps and start-up resellers

Looking for a new lucrative product line?

GSA Golf offer great commissions on sales on all our systems

What the most successful golf simulator companies earn

The two most popular low cost golf simulator pad manufactures have sold to date 50,000 to 75,000 units each at a retail price of between $500 and $900

Assuming both operate on just a $100 to $200 profit margin

then that equates to $ 7.5 million to $ 15 million profits each

Note that we have very reliable sources confirming these numbers

It has been estimated that SkyTrak sales have exceeded 20,000 so far

with a gross profit for the company of $1,000 per unit.

That would then equate to a gross profit of $20 million.

Likewise, the two most popular high-end golf simulators selling in the $30,000 to $50,000 range

have sold well over 5000 units each with an average of $10,000 profit per sale.

This equates to around $ 50 million in profits per company

The golf simulator market

The golf simulator market has been on an incredible run for the last few years.

Research indicates the market is worth around $1.5 billion

— and is expected to be over $3 billion in 2030.

We have had several acquisitions and investments in the last two years.

Foresight sold to Vista Outdoor for $474 million.

Full Swing received a $160 million majority investment from Bruin Capital.

Skytrak sold to Golftec for $65 million.

Foresight being valued at nearly half a billion is impressive.

For reference — Callaway’s market cap is $2.4 billion.

Golf simulators were seeing a rise in popularity before Covid.

Then, the market exploded during Covid as more people were working from home and getting into golf.

These are just a number of the international countries GSA Golf regularly ship to other than our home USA country

Hi! I'm Martin Paul Gardiner

Electronics and software development engineer and founder of GSA Golf

New GSA Golf showroom opening later next year in Naples, Florida
