VisTrak LX/KX Installation
Download and install all the Control Panel software from the links supplied to you in the email sent to you
Install the camera driver software from the supplied USB drive
Mount cameras as per the instructions of your specific system
(i.e. SCX, EVi, Eagle or LX) and connect the cameras to USB3 ports on your PC
Start the Control Panel and ensure that both cameras are running
(i.e. there's no error messages and you see the message that 2 cameras are running)
Go to the Setup panel and select Vistrak EVi / SCX / LX2 (depending on what system you have)
from the list of systems on the right hand side of the screen
Go to the camera 1 panel and right click on the "Defaults" button to set all settings to their default values.
With a ball placed on its normal launch position on your mat,
select the "Show Full Ball Frame" option and the "Video Stream Mode" option and aim the camera so that it appears close to the center of the screen
Do the same for camera 2.
Click on the Start Cameras button in the Control Panel's main window and wait a second or 2 until you see the message " ball detected, ready for swing"
You are now ready to play the ball
after a ball strike, you should see the message "Ball launch detected. Launch parameters sent to the game software"
Start you golf game software (E6, GSpro, TGC, CG3d or GSA Golf) and click the large minimize button at the top right of the screen .
You are now ready to play a round.
If using a KX system, attach the unit to the base of the monitor stand using the supplied Velcro strips.
Steps 1 and 2
SSi camera driver installation
Click above button to read
Unit and Ball placement

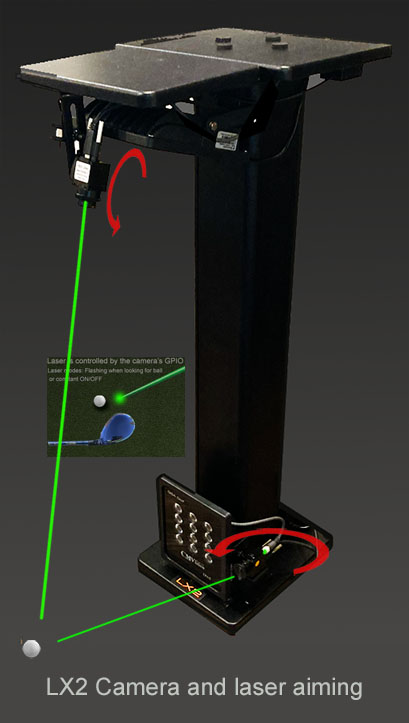

Place unit and ball as indicated
Note that you can manually switch the lasor dot ON in the setup panel
(select LED Light Strip ON/OFF)

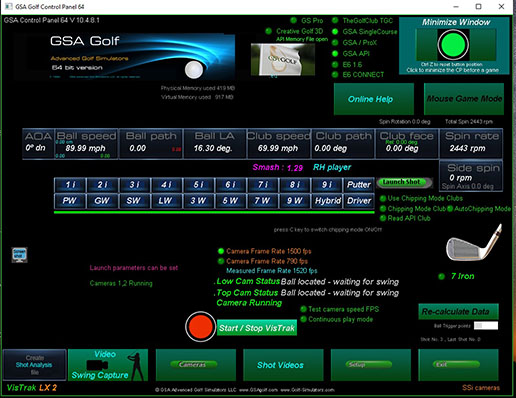

The CP's main window
Click on the Launch CP to start the Control Panel
After the camera drivers are installed and you start the Control Panel (CP) with the cameras connected to the PC
you should see that cameras 1 and 2 are running.

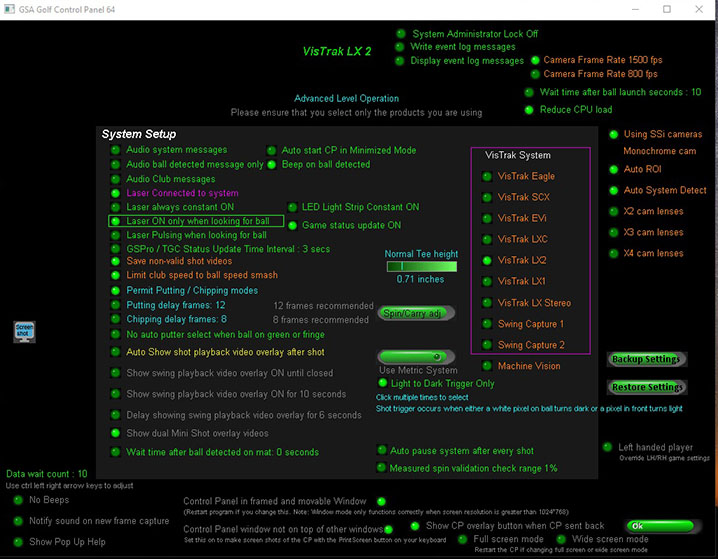

The CP's setup panel
Go to the Setup panel and select Vistrak LX2
Ensure the option " Using SSi cameras" is selected ON
The CP's camera windows

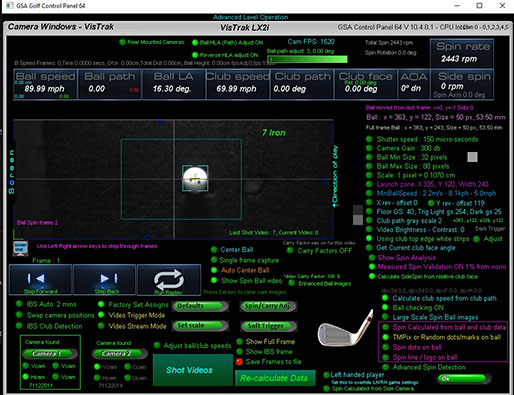

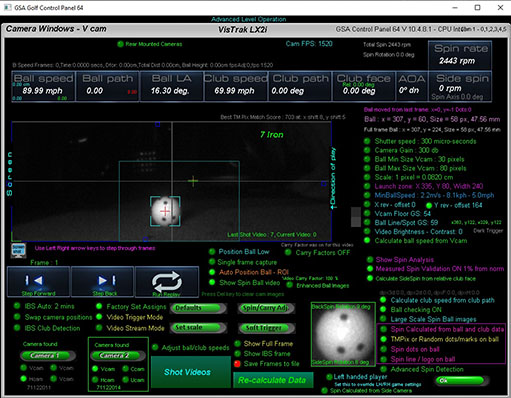

Right click on the "Defaults" button in both cameras 1 and 2 to set all settings to their default values.
Step 7 and 8.
Checking the camera aiming

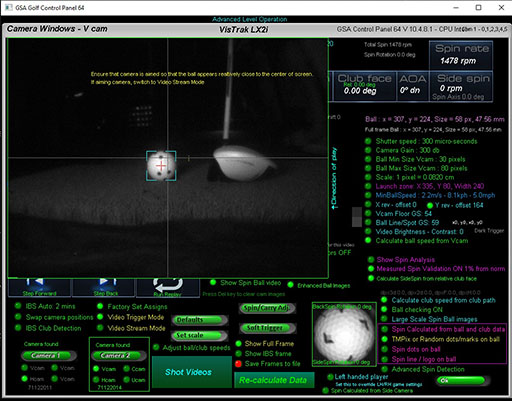

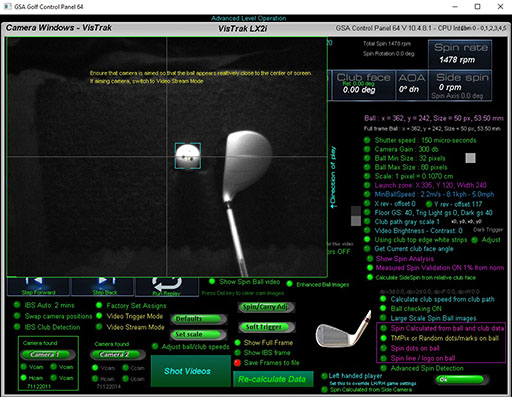

With the "Show Full Ball Frame" and "Video Stream Mode" options switch on in the camera window,
ensure that the ball in both cameras appears approximately in the center of the images as shown above.
It doesn't have to be exact as the cameras will position the ball automatically.
Click on the Start Cameras button in the Control Panel's main window
and wait a second or 2 until you see the message " ball detected, ready for swing" and/or hear the ball detected beep sound
The CP's status messages.
After clicking the Start / Stop VisTrak button or clicking the Minimize button,
the CP will start looking for a ball in the Launch Zone area.
When a ball is detected, a beep will sound.
If a valid shot has been detected, the system will send the shot data to the game software.
After the ball has landed, the CP will automatically cycle back to the Looking for Ball mode
After Clicking the large "Minimize Window" button in the CP,
2 small buttons will show at the top left hand side of the game software.
Click on the minimized Control Panel to go back the full size CP window
Click Show Swing Video to see the last shot video
You are now ready to play the ball
VisTrak Camera installation Video
VisTrak Golf Game Play
VisTrak interfaces with TGC (The Golf Club), GSA ProX, GS Pro, RedChain, E6 1.6 and E6 Connect golf game software.
Select the game software you are using from the radio buttons at top right corner of the Control Panel's main window.
Click the large "Minimize Window" button to start the cameras and connect to the game.
The CP Shot Replay Video panel
The KX features dual swing playback videos after every shot
The video shot video panel allows you to replay any recorded shot video.
The new "Mini" shot videos are immediately displayed in the game software after every shot.
The video window can be positioned anywhere in the game software.
